  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PBT/Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded

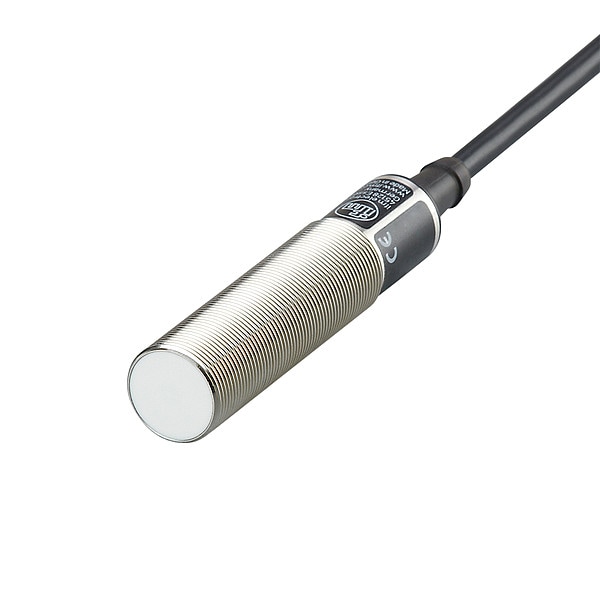

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PBT/Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded IG0328 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PBT/Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # IG0328

  • Zoro # G6932764

product price: $64.59
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Length
98 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
25 Hz AC/50 Hz DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG0328
Zoro #
G6932764
UPC #
-
Country of Origin
Romania

Dimensions

Length
98 mm
Dimensions [mm]
M18 x 1 / L = 80
Overall Height
80 mm
Cable Length
2 m
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
25 Hz AC/50 Hz DC
Max. Current Load
250/100mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Includes
(2) Lock Nuts
Standards
EN 60947-5-2, EN 55011, UL E174191, UL Listed
Description/Special Features
Red LED Output Indication
Electrical Connection
Bare Wire
Permanent current rating of switching output DC [mA]
100
Protection class
II
Thread designation
M18 x 1
Reverse polarity protection
no
Ambient temperature [°C]
-25...80
Materials
stainless steel (1.4571/316Ti ); PBT uncoloured
Switching frequency DC [Hz]
50
Real sensing range Sr [mm]
5± 10 %
Mounting
flush mountable
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
MTTF [years]
610
Housing
threaded type
Short-circuit proof
no
Switch point drift [% of Sr]
-10...10
Hysteresis [% of Sr]
1...15
Protection
IP 67
Operating voltage [V]
20...250 AC/DC
Overload protection
no
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Display
switching status 1 x LED, red
Items supplied
lock nuts: 2
Permanent current rating of switching output AC [mA]
250; (350 (...50°C))
Max. voltage drop switching output DC [V]
6
Operating distance [mm]
0...4.05
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
EMC
EN 60947-5-2 EN 55011 class B
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
Sensing range [mm]
5
Switching frequency AC [Hz]
25
Minimum load current [mA]
5
Connection
Cable: 2 m, PVC; 2 x 0.5 mm²
Max. voltage drop switching output AC [V]
6.5
Ambient temperature [°C]
-25...80
Output Circuit Voltage - Maximum
6 V DC
Switching Frequency
25 Hz (AC), 50 Hz (DC)
DC Voltage Rating
20-250V DC
Operating Temperature - Maximum
176 Degrees F
Sensing Distance - Maximum
5 mm
Output Circuit Number of Wires
2
Output Circuit Current - Maximum
250 mA
Sensing Face Shielding
Shielded
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
20-250V AC
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
AC/DC-Type
Output Circuit Contact Form
NO
Style
Cylindrical, Inductive
Body Material
PBT/Stainless Steel
Body Stainless Steel Grade
316L

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Shielded, Proximity Sensor Operating Frequency 25 Hz AC/50 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material 316L Stainless Steel, Length 98 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA
