  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 1/2 in Connector, 2 Wires, Unshielded

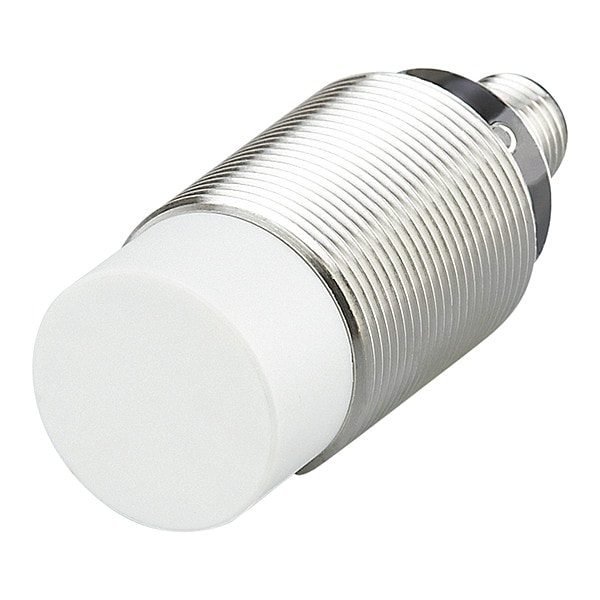

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 1/2 in Connector, 2 Wires, Unshielded II0341 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 1/2 in Connector, 2 Wires, Unshielded

  • Mfr # II0341

  • Zoro # G6415394

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Length
72 mm
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/70 Hz DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
II0341
Zoro #
G6415394
UPC #
094720864295
Country of Origin
Romania

Dimensions

Length
72 mm
Dimensions [mm]
M30 x 1.5
Overall Height
72 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/70 Hz DC
Max. Current Load
250/100mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
EN 60947-5-2, EN 55011
IP Rating
IP67
Includes
(2) Lock Nuts
Description/Special Features
Red LED Output Indication
Electrical Connection
1/2 in Connector
Short-circuit proof
no
MTTF [years]
606
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.48 / copper: 0.4
Mounting
non-flush mountable
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
Switch point drift [% of Sr]
-10...10
Max. voltage drop switching output AC [V]
6.5
Switching frequency DC [Hz]
70
Switching frequency AC [Hz]
25
Protection class
I
Hysteresis [% of Sr]
3...20
Ambient temperature [°C]
-25...70
Permanent current rating of switching output AC [mA]
250; (350 (...50°C))
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Reverse polarity protection
no
Real sensing range Sr [mm]
22± 10 %
Operating distance [mm]
0...17.6
Permanent current rating of switching output DC [mA]
100
Housing
threaded type
Max. voltage drop switching output DC [V]
6
Thread designation
M30 x 1.5
Protection
IP 67
Sensing range [mm]
22
Display
switching status 1 x LED, red
Max. leakage current [mA]
1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC)
Items supplied
lock nuts: 2
Materials
brass white bronze coated; sensing face: PBT; LED window: PA
Minimum load current [mA]
5
Overload protection
no
Operating voltage [V]
20...250 AC/DC
EMC
EN 60947-5-2 EN 55011 class B
Ambient temperature [°C]
-25...70
Body Finish
Bronze Coated
Sensing Distance - Maximum
22 mm
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
AC/DC-Type
AC Voltage Rating
20-250V AC
Output Circuit Number of Wires
2
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
158 Degrees F
Body Material
Brass
Output Circuit Voltage - Maximum
6 V DC
Sensing Face Shielding
Unshielded
Output Circuit Current - Maximum
250 mA
Output Circuit Contact Form
NO
Style
Cylindrical, Inductive
Number of Pins
3
Switching Frequency
25 Hz (AC), 70 Hz (DC)
DC Voltage Rating
20-250V DC
Operating Temperature - Minimum
-13 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/70 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 72 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA
