  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

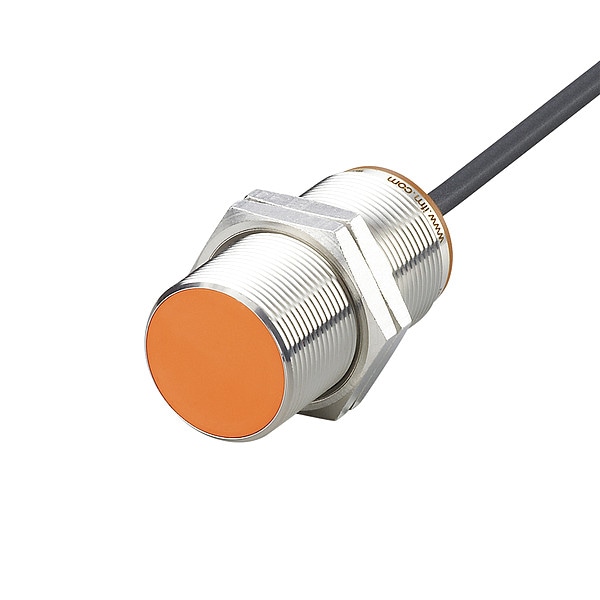

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded IIS238 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # IIS238

  • Zoro # G0528048

product price: $59.49
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
100 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IIS238
Zoro #
G0528048
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M30 x 1.5 / L = 60
Overall Height
60 mm
Cable Length
2 m
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
100 Hz
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-14 Na, EN 60068-2-27, EN 60068-2-52 Kb, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A002
Description/Special Features
Overload And Short Protection
IP Rating
IP65, IP66, IP67, IP68, IP69K
Operating Temp. Range
-40 Degrees to 185 Degrees F
Max. Current Load
100mA
Includes
(2) Lock Nuts
Electrical Connection
Bare Wire
MTTF [years]
861
Reverse polarity protection
yes
UL approval
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A002 File number UL E174191
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Connection
Cable: 2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²
Overload protection
yes
Salt spray test
EN 60068-2-52 Kb severity level 5 (4 test cycles)
Housing
threaded type
Real sensing range Sr [mm]
15± 10 %
Current consumption [mA]
< 10
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Increased sensing range
yes
Protection class
III
Max. voltage drop switching output DC [V]
2.5
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Protection
IP 65; IP 66; IP 67; IP 68; IP 69K
Ambient temperature [°C]
-40...85
Thread designation
M30 x 1.5
Display
switching status 1 x LED, yellow
Special feature
Increased sensing range
Vibration resistance
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Mounting
flush mountable
Continuous shock resistance
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Operating distance [mm]
0...12.15
Switching frequency DC [Hz]
100
Shock resistance
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Fast temperature change
EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles
Hysteresis [% of Sr]
3...15
Items supplied
lock nuts: 2
Sensing range [mm]
15
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
100
Application
Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
Embedded software included
yes
Switch point drift [% of Sr]
-10...10
Operating voltage [V]
10...30 DC
Electrical design
PNP
Ambient temperature [°C]
-40...85
Operating Temperature - Maximum
185 Degrees F
Body Material
Brass
Switching Frequency
100 Hz
Output Circuit Number of Wires
3
Operating Temperature - Minimum
-40 Degrees F
Output Circuit Type
PNP
Includes Indicator Lights
Indicator Lights Included
DC Voltage Rating
10-30V DC
Style
Cylindrical, Inductive
Output Circuit Voltage - Maximum
2.5 V DC
Sensing Distance - Maximum
15 mm
Output Circuit Contact Form
NO
Output Circuit Current - Maximum
100 mA
Sensing Face Shielding
Shielded
Electrical Installation Type
Prewired Cable
Features
Safe Detection
Body Finish
Bronze Coated
AC Voltage Rating
Not Rated

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
