  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

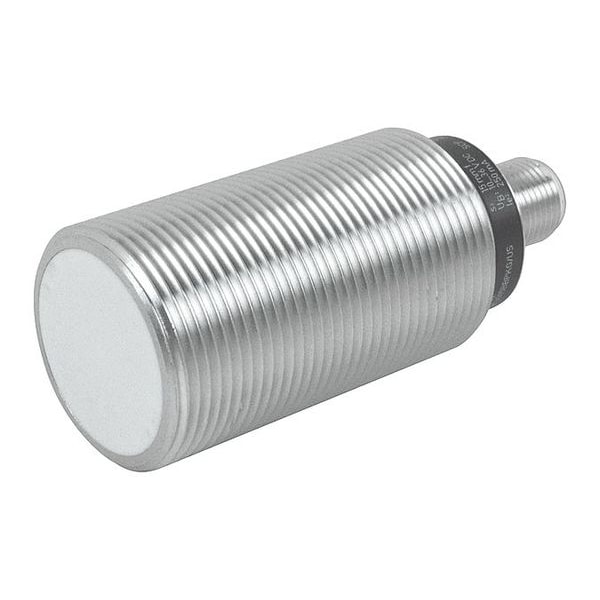

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded II5742 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # II5742

  • Zoro # G9990075

product price: $90.39
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
72 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
250 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
II5742
Zoro #
G9990075
UPC #
-
Country of Origin
Romania

Dimensions

Length
72 mm
Dimensions [mm]
M30 x 1.5 / L = 72
Overall Height
70 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
250 Hz
IP Rating
IP67
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
250mA
Electrical Connection
M12
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A004
Sensing range [mm]
15
Electrical design
PNP
MTTF [years]
2247
Permanent current rating of switching output DC [mA]
250
Max. voltage drop switching output DC [V]
2.5
Materials
brass white bronze coated; PBT uncoloured
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Reverse polarity protection
yes
Ambient temperature [°C]
-25...70
Mounting
flush mountable
EMC
EN 60947-5-2 EN 55011 class B
Protection class
II
Display
switching status 4 x 90° LED, yellow
Special feature
Increased sensing range
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
Increased sensing range
yes
Short-circuit protection
yes
Switching frequency DC [Hz]
250
Operating voltage [V]
10...36 DC
Housing
threaded type
Type of short-circuit protection
pulsed
Protection
IP 67
Hysteresis [% of Sr]
1...15
Operating distance [mm]
0...12.1
Thread designation
M30 x 1.5
Overload protection
yes
Connection
Connector: 1 x M12; coding: A
Items supplied
lock nuts: 2
Current consumption [mA]
15; (24 V)
Output Circuit Current - Maximum
200 mA
Output Circuit Type
PNP
Sensing Distance - Maximum
15 mm
Output Circuit Contact Form
NO
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Direct Connector
Body Material
Brass
DC Voltage Rating
10-30V DC
Sensing Face Shielding
Shielded
Output Circuit Voltage - Maximum
2.5 V DC
Body Finish
Bronze Coated
Output Circuit Number of Wires
3
Operating Temperature - Maximum
158 Degrees F
Number of Pins
4
Style
Cylindrical, Inductive
AC Voltage Rating
Not Rated
Switching Frequency
250 Hz
Operating Temperature - Minimum
-13 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 250 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 72 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
