Shop IFM

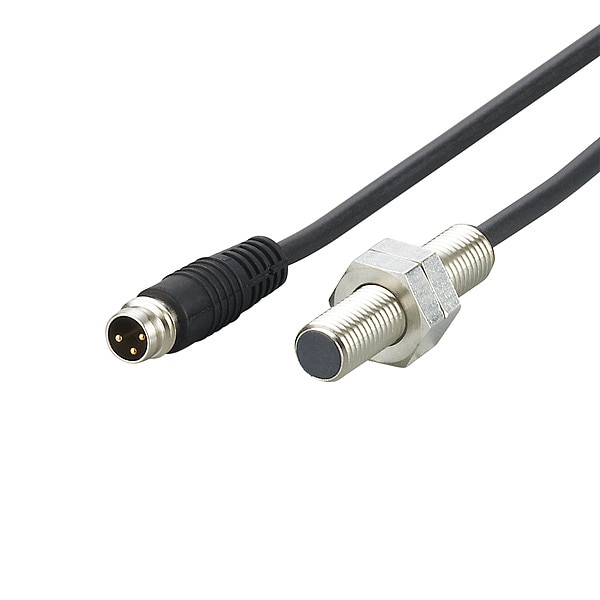

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 0.3 m, M8, 2, 3 Wires, Shielded

  • Mfr # IE5344

  • Zoro # G9990111

product price:  $69.55
/ea

Key Features

Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Output Circuit Type
NPN/PNP
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IE5344
Zoro #
G9990111
UPC #
-
Country of Origin
United States

Dimensions

Length
37 mm
Dimensions [mm]
M8 x 1 / L = 37
Overall Diameter
8 mm
Cable Length
0.3 m
Overall Height
37 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Output Circuit Type
NPN/PNP
Output Circuit Number of Wires
2, 3
Sensing Distance - Maximum
3 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 60947-5-2, UL E174191, UL Listed
Proximity Sensor Electrical Connection
3 Pin M8 Connector
Proximity Sensor Operating Frequency
1,000 Hz
Max. Current Load
100mA
Includes
(2) Lock Nuts
Operating Temp. Range
32 Degrees to 140 Degrees F
IP Rating
IP67
Electrical Connection
M8
Protection
IP 67
Reverse polarity protection
yes
Ambient temperature [°C]
0...60
Materials
brass white bronze coated; sensing face: LCP
Items supplied
lock nuts: 2
Hysteresis [% of Sr]
1...15
Operating distance [mm]
0...2.4
Type of short-circuit protection
pulsed
Minimum load current [mA]
2
EMC
EN 60947-5-2
Overload protection
yes
Current consumption [mA]
< 10; (only in 3-wire operation)
UL approval
Ta -25...80°C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191
Protection class
III
Max. leakage current [mA]
0.5; (only in 2-wire operation)
Max. voltage drop switching output DC [V]
2.8
Sensing range [mm]
3
MTTF [years]
1517
Housing
threaded type
Electrical design
PNP/NPN
Display
switching status 1 x LED, yellow
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
100; (only in 2-wire operation)
Mounting
flush mountable
Thread designation
M8 x 1
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Switching frequency DC [Hz]
1000
Operating voltage [V]
10...30 DC
Ambient temperature [°C]
0...60
Body Finish
Bronze Coated
Sensing Method
Inductive
Electrical Installation Type
Direct Connector
Output Circuit Voltage - Maximum
2.8 V DC
Output Circuit Current - Maximum
100 mA
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
140 Degrees F
Sensing Face Shielding
Shielded
Switching Frequency
1,000 Hz
Operating Temperature - Minimum
32 Degrees F
Number of Pins
3

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP/NPN, Max. Detecting Distance 3 mm, Proximity Sensor Electrical Connection 3 Pin M8 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 37 mm, Operating Temp. Range 32 Degrees to 140 Degrees F, Max. Current Load 100mA
