  11. Diffuse Photoelectric Sensor, M12, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

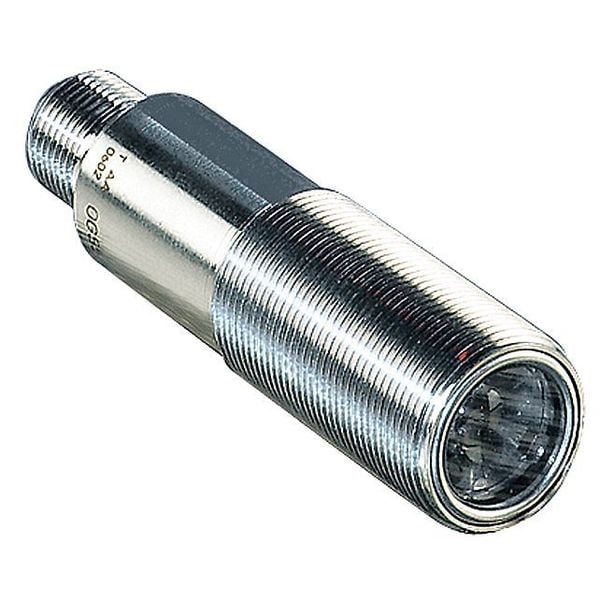

Ifm Diffuse Photoelectric Sensor, M12, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN OGH502 - main

Diffuse Photoelectric Sensor, M12, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

  • Mfr # OGH502

  • Zoro # G6545682

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Diffuse
Length - Cylindrical Photoelectric Sensor
72 mm
Power Requirement - Cylindrical Photoelectric Sensor
10 to 36V DC
Light Source
Red LED
Power Requirement
10 to 36VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OGH502
Zoro #
G6545682
UPC #
094720883746
Country of Origin
Germany

Dimensions

Length - Cylindrical Photoelectric Sensor
72 mm
Diameter
18mm
Length
72.00mm
Min. Object Size
25mm dia Light Spot
Diameter - Cylindrical Photoelectric Sensor
18 mm
Overall Height
72 mm
Light spot dimensions refer to
at maximum range
Max. light spot diameter [mm]
25
Dimensions [mm]
M18 x 1 / L = 72
Wave length [nm]
624
Overall Diameter
18 mm
Minimum Object Size
25mm Dia. Light Spot
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor
Sensing Method
Diffuse
Power Requirement - Cylindrical Photoelectric Sensor
10 to 36V DC
Light Source
Red LED
Power Requirement
10 to 36VDC
Features
Overload Protection, PEI Lens, Reverse Polarity Protection
Max. Load Current
200 mA
Standards
CE, cULus, UKCA
Electrical Connection
M12
Operating Temp. Range
-25 Degrees to 80 Degrees C
Body Material
Stainless Steel
Max. Sensing Distance - Cylindrical Photoelectric Sensor
300 mm
IP Rating
IP67
Max. Sensing Distance
300mm
Operating Frequency
1,000 Hz
Display
switching status 1 x LED, yellow
Switching frequency DC [Hz]
1000
Current consumption [mA]
25
Lens material
PMMA
Materials
stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
Items supplied
lock nuts: 2 x
Function principle
Diffuse reflection sensor
Type of short-circuit protection
pulsed
Protection
IP 67
Operating voltage [V]
10...36 DC
Factory setting
light-on mode
Permanent current rating of switching output DC [mA]
150; (200 (...60°C))
Type of light
red light
Thread designation
M18 x 1
Reverse polarity protection
yes
Electrical design
NPN
Special feature
Background suppression
EMC
EN 60947-5-2
Ambient temperature [°C]
-25...80
Range adjustable
yes
Overload protection
yes
Max. voltage drop switching output DC [V]
2.5
Background suppression available
yes
Short-circuit protection
yes
Protection class
II
MTTF [years]
368
Range [mm]
15...300; (white paper 200 x 200 mm 90% remission)
Sensing Distance - Minimum
15 mm
Operating Temperature - Maximum
176 Degrees F
Output Circuit Type
NPN
Operating Mode
Selectable Light On/Dark On
DC Voltage Rating
10-36V DC
Sensing Distance - Maximum
300 mm
Style
Cylindrical
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
1 kHz
Emitted Sensor Light
Red Light
Orientation
Right Angle
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
200 mA
NEMA Enclosure Rating
No Enclosure
Number of Pins
4

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 300 mm
