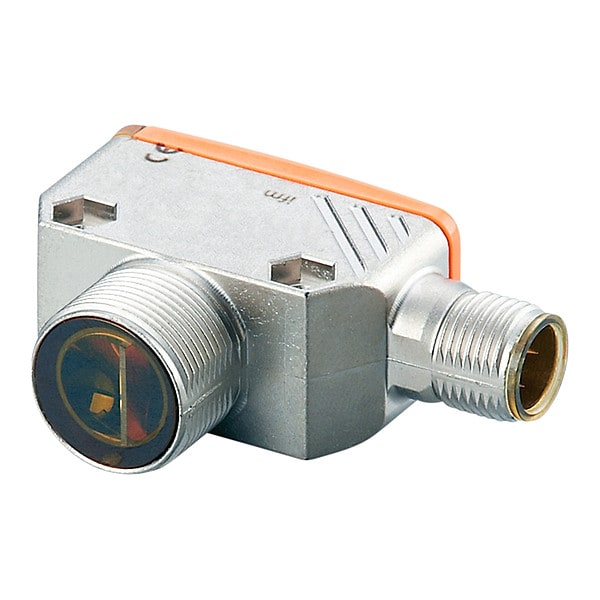

Diffuse Photoelectric Sensor, M12, Right Angle, Rectangular, Light On, NPN

  • Mfr # OGH283

  • Zoro # G6413985

product price:
$
89.99
/ea

Key Features

Sensing Method
Diffuse
Electrical Connection
M12
Style
Rectangular
Width
18.00mm
Orientation
Right Angle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OGH283
Zoro #
G6413985
UPC #
-
Country of Origin
Germany

Dimensions

Width
18.00mm
Depth
52.00mm
Height - Rectangular Photoelectric Sensor
35 mm
Min. Object Size
13mm dia Light Spot
Width - Rectangular Photoelectric Sensor
18 mm
Length
35.40mm
Depth - Rectangular Photoelectric Sensor
52 mm
Overall Height
53 mm
Minimum Object Size
13mm Dia. Light Spot
Overall Width
19 mm
Overall Depth
36 mm

Details

Item
Photoelectric Sensor
Sensing Method
Diffuse
Electrical Connection
M12
Style
Rectangular
Orientation
Right Angle
Operating Mode
Light On
IP Rating
IP65, IP67
Output Circuit Type
NPN
DC Voltage Rating
10-30V DC
Standards
CE, cULus, IEC, UKCA
Body Material
Zinc
Light Source
Red LED
Max. Sensing Distance
200mm
Operating Frequency
1,000 Hz
Max. Sensing Distance - Rectangular Photoelectric Sensor
200 mm
Power Requirement - Rectangular Photoelectric Sensor
10 to 30V DC
Max. Load Current
200 mA
Operating Temp. Range
-25 Degrees to 60 Degrees C
Power Requirement
10 to 30VDC
Features
Overload Protection, PEI Lens, Reverse Polarity Protection
Response Time
10 msec
Switching Frequency
1 kHz
Product Type
Photoelectric Sensor
Operating Temperature - Maximum
140 Degrees F
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Number of Pins
4
Electrical Installation Type
Direct Connector
NEMA Enclosure Rating
No Enclosure
Sensing Distance - Maximum
200 mm
Emitted Sensor Light
Red Light
Load Current - Maximum
200 mA

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Light On
