  11. Diffuse Photoelectric Sensor, M12, Right Angle, Rectangular, Selectable Light On/Dark On, PNP

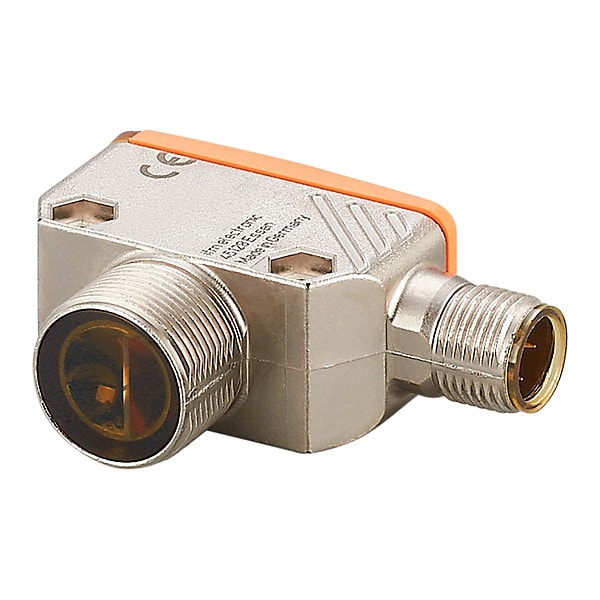

Ifm Diffuse Photoelectric Sensor, M12, Right Angle, Rectangular, Selectable Light On/Dark On, PNP OGH580 - main

Diffuse Photoelectric Sensor, M12, Right Angle, Rectangular, Selectable Light On/Dark On, PNP

  • Mfr # OGH580

  • Zoro # G6763005

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Width
18.00mm
Depth
52.00mm
Max. Sensing Distance
200mm
Width - Rectangular Photoelectric Sensor
18 mm
Max. Load Current
200 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OGH580
Zoro #
G6763005
UPC #
-
Country of Origin
Germany

Dimensions

Width
18.00mm
Depth
52.00mm
Width - Rectangular Photoelectric Sensor
18 mm
Length
35.40mm
Depth - Rectangular Photoelectric Sensor
52 mm
Min. Object Size
13mm dia Light Spot
Height - Rectangular Photoelectric Sensor
35 mm
Overall Height
53 mm
Max. light spot diameter [mm]
13
Light spot dimensions refer to
at maximum range
Wave length [nm]
645
Dimensions [mm]
52.6 x 19 x 35.6
Overall Depth
36 mm
Overall Width
19 mm
Minimum Object Size
13mm Dia. Light Spot

Details

Item
Photoelectric Sensor
Max. Sensing Distance
200mm
Max. Load Current
200 mA
Electrical Connection
M12
Power Requirement - Rectangular Photoelectric Sensor
10 to 30V DC
Power Requirement
10 to 30VDC
Features
Overload Protection, PEI Lens, Reverse Polarity Protection
IP Rating
IP65, IP67
Light Source
Red LED
Operating Temp. Range
-25 Degrees to 60 Degrees C
Body Material
Zinc
Operating Frequency
1,000 Hz
Sensing Method
Diffuse
Max. Sensing Distance - Rectangular Photoelectric Sensor
200 mm
Standards
CE, cULus, IEC, UKCA
Display
switching status 1 x LED, yellow operation 1 x LED, green
Response Time
10 msec
Thread designation
M18 x 1
Lens alignment
side lens
Operating voltage [V]
10...30 DC; ("supply class 2" to cULus)
Lens material
PEI
Items supplied
lock nut: 1 x
SDCI standard
IEC 61131-9
Current consumption [mA]
25
Type of short-circuit protection
pulsed
Max. voltage drop switching output DC [V]
2.5
IO-Link revision
1.1
Background suppression available
yes
Range on black object (6 % remission) [mm]
15...200
SIO mode
yes
UL approval
Ta -25...60°C Enclosure type Type 1 power supply Class 2 File number UL E174191
Range on white object (90 % remission) [mm]
15...200
IO-Link process data (cyclical)
function bit length process value 16 device status 4 binary switching information 1
Special feature
Background suppression
Range adjustable
yes
Protection class
III
Min. process cycle time [ms]
10
Storage temperature [°C]
-40...60
Function principle
Diffuse reflection sensor
Materials
diecast zinc; PEI
Rated insulation voltage [V]
32
Communication interface
IO-Link
EMC
EN 60947-5-2
Transmission type
COM2 (38,4 kBaud)
Protection
IP 65; IP 67
Required master port type
A
Profiles
Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
Switching frequency DC [Hz]
1000
Electrical design
PNP
Max. power-on delay time [ms]
300
IO-Link functions (acyclical)
application specific tag; operating hours counter; switching cycles counter
Range [mm]
15...200; (white paper 200 x 200 mm 90% remission)
Operating elements
switch point pushbutton Output function pushbutton
Ambient temperature [°C]
-25...60
Type of light
red light
Permanent current rating of switching output DC [mA]
200
Short-circuit protection
yes
Range on grey object (18 % remission) [mm]
15...200
MTTF [years]
782
Reverse polarity protection
yes
Storage temperature [°C]
-40...60
Number of Pins
4
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Direct Connector
Orientation
Right Angle
Operating Temperature - Maximum
140 Degrees F
Includes Indicator Lights
Indicator Lights Included
Style
Rectangular
Sensing Distance - Maximum
200 mm
NEMA Enclosure Rating
No Enclosure
Output Circuit Type
PNP
Load Current - Maximum
200 mA
Operating Mode
Selectable Light On/Dark On
DC Voltage Rating
10-30V DC
Sensing Distance - Minimum
15 mm
Switching Frequency
1 kHz
Emitted Sensor Light
Red Light

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
