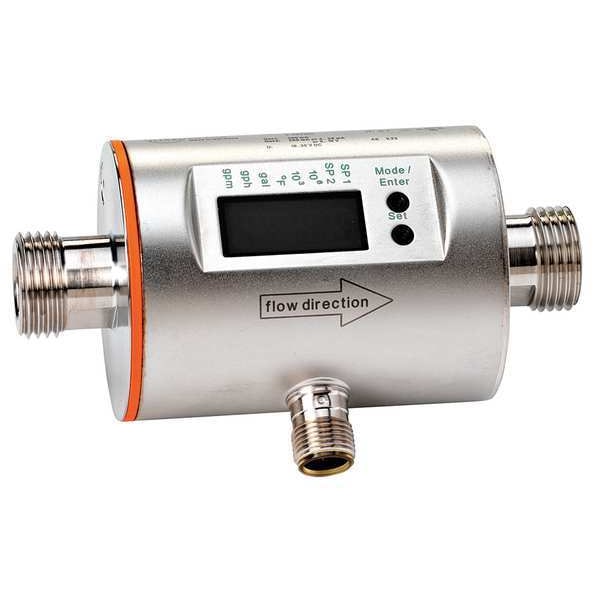

Flow Meter, Magnetic, 100 LPM

Mfr # SM8004
Zoro # G6762987

$956.99

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Housing Material Stainless Steel
For Pipe Size 1 in
Connection Size 1 in
Flow Material Conductive Media
Connection Type BSPP

See all product information

Brand Ifm
MFR # SM8004
Zoro # G6762987
Country of Origin Germany
Category Flowmeters

Dimensions

For Pipe Size	1 in
Connection Size	1 in
Fitting Size (In.)	1
Length (In.)	4 in
Overall Length	4 in

Details

Item	Electronic Flowmeter
Housing Material	Stainless Steel
Flow Material	Conductive Media
Connection Type	BSPP
Max. Pressure	232 psi
Max. Viscosity	370 SUS
Wetted Materials	316L Stainless Steel, FKM, PEEK
Flow Range	0.2 to 100 gpm
Fluid Temp. Range	-4 Degrees to 176 Degrees F
Ambient Temperature	14 Degrees to 140 Degrees F
Accuracy (%)	+/-2
Flow Range (LPM)	0.2 to 100
Fluid Temp. Range (Deg. F)	-4 to 176
Pressure Rating (PSI)	232
Display Type	LED
Sensor Type	Magnetic
Output Type	4-20 mA
Display Units	cu m, L, Lpm, M3PH
Standards	CE Certified, CRN, CSA Certified, cULus Listed, EC 1935/2004, IO-Link, UKCA
Shaft Material	Stainless Steel
Seal Material	Stainless Steel
Includes Totalizer	No
Media Temperature - Minimum	-10 Degrees C
Viscosity - Maximum	70 SUS
Includes Flow Rate Adjustment Knob	No
Accuracy	+/-2%
Voltage - Maximum	30V DC
Media Temperature - Maximum	70 Degrees C
Product Type	Electronic Flowmeter
O-Ring Material	Viton
Includes Pressure Gauge	No
Mounting Orientation	Universal
Unit Of Measure	Liters
Flowmeter Type	Electromagnetic
Flow Rate - Minimum	0.2 gpm
Operating Pressure - Maximum	232 psi
Flow Rate - Maximum	100 lpm
Compatible Flow Material	Conductive Liquids, Water, Water-Like Liquids
Wetted Material	316L Stainless Steel, Viton, PEEK

Description

Electronic Flowmeter, Product Type Electronic Flowmeter, Flowmeter Type Electromagnetic, Accuracy +/-2 Percent, Connection Size 1 in, Connection Type BSPP, Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids, Media Temperature - Maximum 70 Degrees C, Media Temperature - Minimum -10 Degrees C, Viscosity - Maximum 70 SUS, Voltage - Maximum 30V DC, Housing Material Stainless Steel, O-Ring Material Viton, Seal Material Stainless Steel, Shaft Material Stainless Steel
