  9. Flowmeter, 1/4" NPT DN8, 16 bar

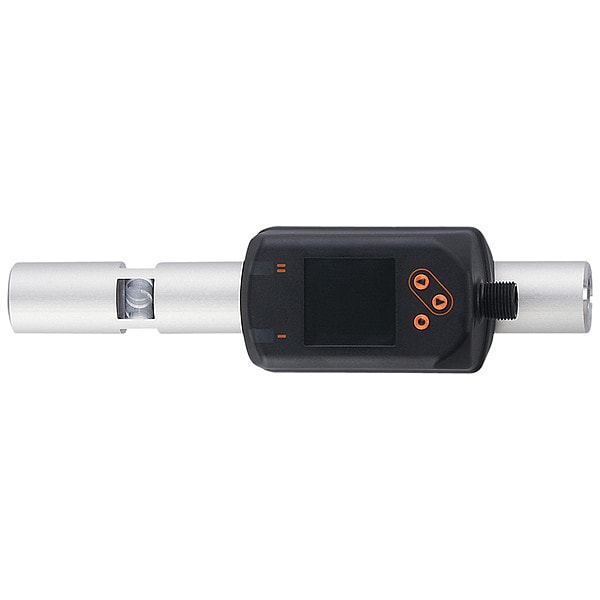

Ifm Flowmeter, 1/4" NPT DN8, 16 bar SD5500 - main

Flowmeter, 1/4" NPT DN8, 16 bar

  • Mfr # SD5500

  • Zoro # G507967452

product price: $946.99
/ea
Free Shipping & Returns

Key Features

Standards
CE, CRN, cULus Listed, DIN EN 60947-5-9, DIN EN 68000-2-6, EAC, IEC 61131-9 CDV, IO-Link, UKCA
Housing Material
1.4301/304 Stainless Steel; 1.4305/303 Stainless Steel; 2.0401 (Brass/CW614N); FKM; Galvanized 1.5523 Steel; PBT+PC-GF30; Polybutylene Terephthalate; PPS GF40
Display Type
Digital/Analog
Wetted Materials
1.4305/303 Stainless Steel, Acrylate, Al2O3 Ceramics, Ceramics Glass Passivated, FKM, PPS GF40
Number of Outputs
1 (Analog); 2 (Digital)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SD5500
Zoro #
G507967452
UPC #
-
Country of Origin
Germany

Dimensions

Process Connection Type and Size
1/4 in DN8

Details

Item
Industrial Flowmeter
Standards
CE, CRN, cULus Listed, DIN EN 60947-5-9, DIN EN 68000-2-6, EAC, IEC 61131-9 CDV, IO-Link, UKCA
Housing Material
1.4301/304 Stainless Steel; 1.4305/303 Stainless Steel; 2.0401 (Brass/CW614N); FKM; Galvanized 1.5523 Steel; PBT+PC-GF30; Polybutylene Terephthalate; PPS GF40
Display Type
Digital/Analog
Wetted Materials
1.4305/303 Stainless Steel, Acrylate, Al2O3 Ceramics, Ceramics Glass Passivated, FKM, PPS GF40
Number of Outputs
1 (Analog); 2 (Digital)
Electrical Connection Type
M12 Connector
Minimum Pressure
-1 bar
Compatible Gases
Compressed Air
Electrical Design
PNP/NPN
Output Signal
Analogue, Pulse, Switching
Protection Features
IP65, IP67, Overload Protection, Protection Class III, Reverse Polarity Protection, Short Circuit Protection
Maximum Ambient Temperature
60 Degrees C
Measurement Functions
Flow Rate, Medium Temperature, Pressure
Resolution
0.01 cu m/h, 0.1 m/s, 0.2 lpm
For Gas Type
Compressed Air
Process Connection
1/4 in DN8
Maximum Pressure
16 bar
Flow Rate Measuring Range
0.05 to 15 cu m/h, 0.3 to 82.9 m/s, 0.8 to 250 lpm
Minimum Ambient Temperature
0 Degrees C
Operating Voltage
18 to 30V DC
Pressure Measuring Range
-1 to 16 bar

Description

Industrial Flowmeter, Compatible Gases Compressed Air, Display Type Digital/Analog, Electrical Connection Type M12 Connector, Electrical Design PNP/NPN, Flow Rate Measuring Range 0.05 to 15 cu m/h, 0.3 to 82.9 m/s, 0.8 to 250 lpm, For Gas Type Compressed Air, Housing Material 1.4301/304 Stainless Steel; 1.4305/303 Stainless Steel; 2.0401 (Brass/CW614N); FKM; Galvanized 1.5523 Steel; PBT+PC-GF30; Polybutylene Terephthalate; PPS GF40, Maximum Ambient Temperature 60 Degrees C
