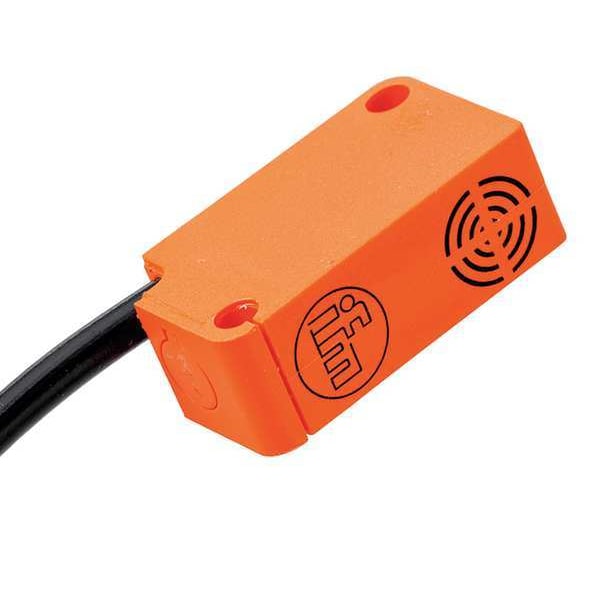

Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # IS5002

  • Zoro # G6540195

product price:
$
53.99
/ea

Key Features

Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 30V DC
Cable Length
2 m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IS5002
Zoro #
G6540195
UPC #
-
Country of Origin
Romania

Dimensions

Cable Length
2 m
Length
28 mm
Width
10 mm
Depth
16 mm
Overall Height
28 mm
Overall Depth
16 mm
Overall Width
10 mm

Details

Item
Proximity Sensor
Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
2 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NC
Standards
EN 61000-4-2 ESD, EN 55011, EN 60947-5-2, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-5 Surge, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
Operating Temp. Range
-13 Degrees to 176 Degrees F
Max. Current Load
200mA
IP Rating
IP67
Description/Special Features
1 Yellow LED For Output State
Electrical Installation Type
Prewired Cable
Switching Frequency
800 Hz
Output Circuit Voltage - Maximum
2.5 V DC
Output Circuit Current - Maximum
200 mA
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Inductive

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating IP67, Case Material PBT, Length 28 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 200mA, Description/Special Features 1 Yellow LED for Output State
