  11. Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 3 Wires, Shielded

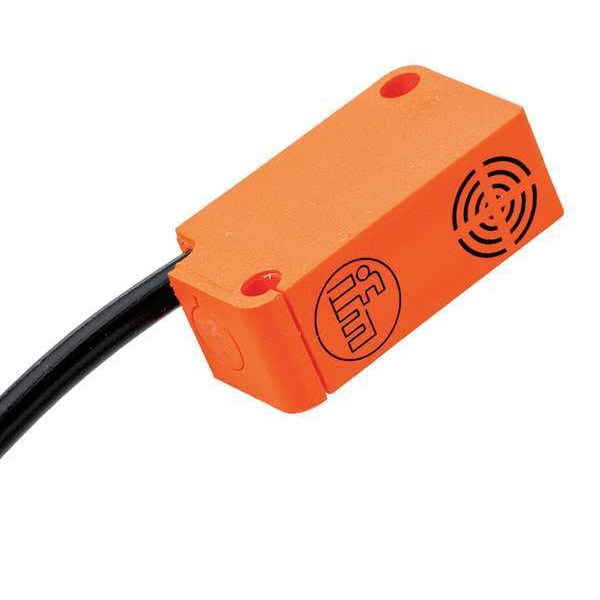

Ifm Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 3 Wires, Shielded IS5003 - main

Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # IS5003

  • Zoro # G7260951

product price: $64.29
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
28 mm
Width
10 mm
Depth
16 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IS5003
Zoro #
G7260951
UPC #
-
Country of Origin
Romania

Dimensions

Length
28 mm
Width
10 mm
Depth
16 mm
Dimensions [mm]
28 x 10 x 16
Overall Height
28 mm
Overall Width
10 mm
Cable Length
2 m
Overall Depth
16 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
Operating Temp. Range
-13 Degrees to 176 Degrees F
IP Rating
IP67
Max. Current Load
200mA
Description/Special Features
1 Yellow LED For Output State
Electrical Connection
Bare Wire
Type of short-circuit protection
pulsed
Protection
IP 67
Tightening torque [Nm]
< 0.5; (with washer)
Permanent current rating of switching output DC [mA]
200
Ambient temperature [°C]
-25...80
Mounting
flush mountable
Protection class
III
Overload protection
yes
Hysteresis [% of Sr]
1...15
UL approval
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191
Switching frequency DC [Hz]
800
Switch point drift [% of Sr]
-10...10
Display
switching status 1 x LED, yellow
Short-circuit protection
yes
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Reverse polarity protection
yes
Sensing range [mm]
2
Connection
Cable: 2 m, PVC; 3 x 0.14 mm²
MTTF [years]
2791
Electrical design
NPN
Max. voltage drop switching output DC [V]
2.5
Housing
rectangular
Operating voltage [V]
10...30 DC
Materials
PBT
Current consumption [mA]
15; (24 V)
Real sensing range Sr [mm]
2± 10 %
Operating distance [mm]
0...1.6
Ambient temperature [°C]
-25...80
DC Voltage Rating
10-30V DC
Switching Frequency
800 Hz
Body Material
PBT
Output Circuit Number of Wires
3
Includes Indicator Lights
Indicator Lights Included
Output Circuit Current - Maximum
200 mA
Sensing Distance - Maximum
2 mm
AC Voltage Rating
Not Rated
Output Circuit Voltage - Maximum
2.5 V DC
Output Circuit Type
NPN
Operating Temperature - Maximum
176 Degrees F
Sensing Face Shielding
Shielded
Operating Temperature - Minimum
-13 Degrees F
Style
Inductive, Rectangular
Output Circuit Contact Form
NO
Electrical Installation Type
Prewired Cable

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material PBT, Length 28 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 200mA, Description/Special Features 1 Yellow LED for Output State
