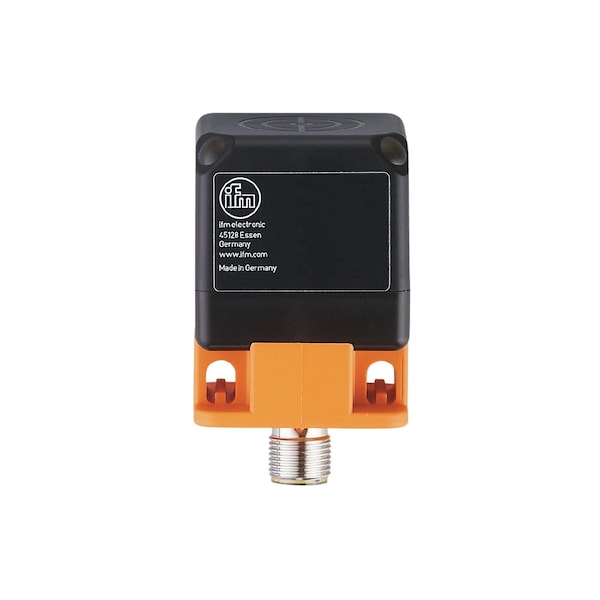

Inductive sensor
Mfr # IM5135
Zoro # G622708091
product price:Â
$
260.99
/ea
Free Shipping & Returns
Key Features
Sensing Range
40 mm
Dimensions
40 x 40 x 54 mm
Material
Housing: PA; Sensing Face: Pa Black; Bevelled Housing Part: PA; Clamp: Orange; Screw: Stainless Steel (1.4567 / 304Cu)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- IM5135
- Zoro #
- G622708091
- UPC #
- -
- Country of Origin
- Romania
Dimensions
- Dimensions
- 40 x 40 x 54 mm
Details
- Item
- Inductive Sensor
- Sensing Range
- 40 mm
- Material
- Housing: PA; Sensing Face: Pa Black; Bevelled Housing Part: PA; Clamp: Orange; Screw: Stainless Steel (1.4567 / 304Cu)
Description
Correction factor K=1: Constant sensing range on all metals. Long sensing range for use in conveying. Complementary output function NO/NC. Five selectable positions of the sensing face. Corner LEDs clearly visible in any mounted position. Inductive sensor; Sensing range 40 mm non-flush mountable; Operating voltage 10...36 DC V; 3-wire; PNP; M12 Connector; correction factor = 1; Magnetic-field immune.
Restrictions
This item has been restricted from sale in the following states:
CA
