  11. IO-Link Master, 16 Inputs, 20 to 30VDC

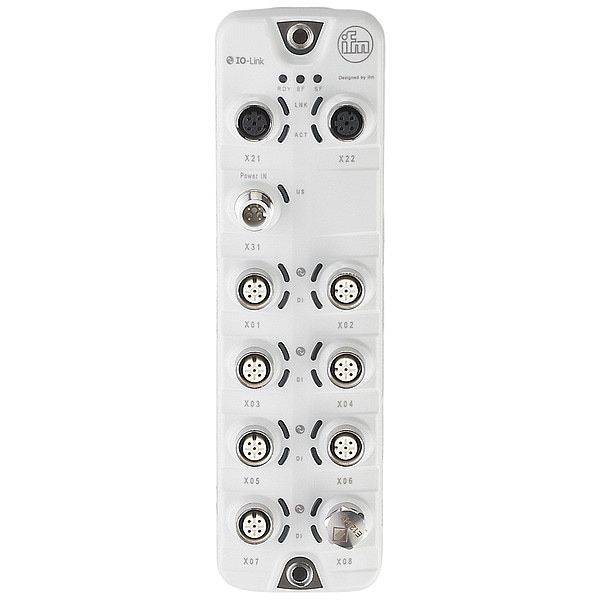

Ifm IO-Link Master, 16 Inputs, 20 to 30VDC AL1103 - main

IO-Link Master, 16 Inputs, 20 to 30VDC

  • Mfr # AL1103

  • Zoro # G108168418

product price: $524.99
/ea
Free Shipping & Returns

Key Features

Application
I/O Modules for Field Applications
Standards
CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Transmission Rate
100 MBps
Housing Material
Polyamide
Current Consumption
3,900 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AL1103
Zoro #
G108168418
UPC #
-
Country of Origin
Poland

Details

Item
IO-Link Master
Application
I/O Modules for Field Applications
Standards
CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Transmission Rate
100 MBps
Housing Material
Polyamide
Current Consumption
3,900 mA
Maximum Current Load Per Output
300 mA
Electrical Connection Type
M12 Connector
Transmission Type
COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
IO-Link Revision
1.1
Maximum Ambient Temperature
60 Degrees C
Protection Features
IP65, IP66, IP67, IP69K, Protection Class III
Number of Digital Inputs
16
Operating Voltage
20 to 30V DC
Communication Interface
Ethernet, IO-Link
Minimum Ambient Temperature
-25 Degrees C
Number of Digital Outputs
8
Operating voltage [V]
20...30 DC; (US; to SELV/PELV)
EMC
EN 61000-6-2 EN 61000-6-4
Max. current load total [A]
3.6
Note on interfaces
CC-C (Conformance Class C) (IRT-Switch) Netload Class III SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line ring
Switching level high [V]
11...30
Sealing material
EPDM
Protection rating (NEMA 250)
6P
Protection class
III
Factory settings
IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label
Storage temperature [°C]
-25...85
Digital inputs protected against short circuits
yes
Switching level low [V]
0...5
X31
Connector: M12; coding: A
Protocol
PROFINET
Total number of inputs and outputs
16; (configurable)
Items supplied
Protective cap: 1 x M12, stainless steel, E12542
IO-Link Port Class A X01...X08
Connector: M12; coding: A; Sealing: EPDM
Vibration resistance
DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
Ambient temperature [°C]
-25...60
Current consumption [mA]
300...3900; (US)
Daisy-chain function
fieldbus interface
Materials
housing: PA grey; socket: stainless steel (1.4404 / 316L)
IN / OUT X21, X22
Connector: M12; coding: D; Sealing: EPDM
Chemical media
ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA
Number of ports class A
8
Transmission standard
100Base-TX
Number of inputs and outputs
Number of digital inputs: 16; Number of digital outputs: 8
Pollution degree
2
MTTF [years]
78
Shock resistance
DIN EN 60068-2-27
Short-circuit proof
yes
Max. relative air humidity [%]
90
Protection
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)
Max. current load per output [mA]
300

Description

IO-Link Master, Application Hygienic Systems, I/O Modules for Field Applications, Communication Interface Ethernet/IP, IO-Link, Current Consumption 3,900 mA, Electrical Connection Type M12 Connector, Housing Material Polyamide, IO-Link Revision 1.1, Maximum Ambient Temperature 60 Degrees C, Maximum Current Load Per Output 300 mA, Minimum Ambient Temperature -25 Degrees C, Number of Digital Inputs 16, Number of Digital Outputs 8, Operating Voltage 20 to 30V DC
