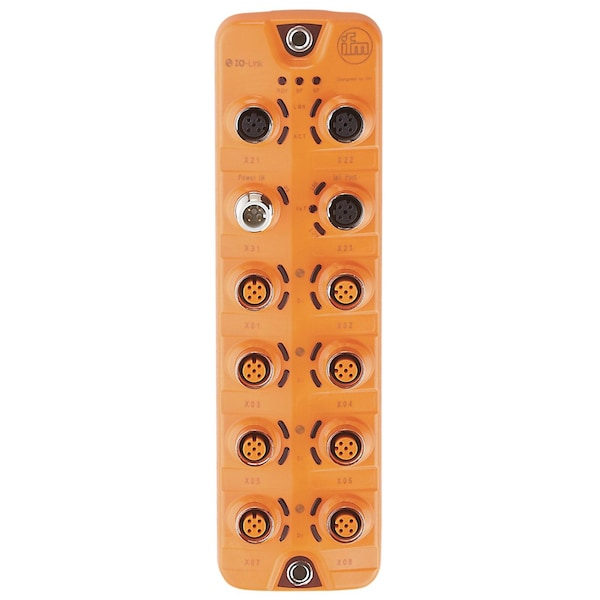

IO-Link Master, 20-30V DC, 300 mA
Mfr # AL1326
Zoro # G722808202
product price:Â
$
451.99
/ea
Free Shipping & Returns
Key Features
Power Connector Type
M12
IO-Link Port Connector Type
M12
Maximum Current Load Per Output
300 mA
Transmission Type
COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
Application
Field Application
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AL1326
- Zoro #
- G722808202
- UPC #
- -
- Country of Origin
- Poland
Details
- Item
- IO-Link Master
- Power Connector Type
- M12
- IO-Link Port Connector Type
- M12
- Maximum Current Load Per Output
- 300 mA
- Transmission Type
- COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
- Application
- Field Application
- Communication Interface
- Ethernet/IP, IO-Link
- Housing Material
- Polyamide
- Power Connector Coding
- A
- Minimum Ambient Temperature
- -25 Degrees C
- Number of Digital Inputs
- 16
- IO-Link Port Connector Coding
- A
- Operating Voltage
- 20 to 30V DC
- Maximum Ambient Temperature
- 60 Degrees C
- Transmission Rate
- 10 MBps, 100 MBps
- Number of Digital Outputs
- 8
- Protection Features
- IP65, IP66, IP67
- Electrical Connection Type
- M12
- IO-Link Revision
- 1.1
Description
IO-Link Master, Application Field Application, Communication Interface Ethernet/IP, IO-Link, Electrical Connection Type M12, Housing Material Polyamide, IO-Link Revision 1.1, Maximum Ambient Temperature 60 Degrees C, Maximum Current Load Per Output 300 mA, Minimum Ambient Temperature -25 Degrees C, Number of Digital Inputs 16, Number of Digital Outputs 8, Operating Voltage 20 to 30V DC, Protection Features IP65, IP66, IP67, Transmission Rate 10 MBps, 100 MBps
