  11. Level Sensor, G3/4 NPT

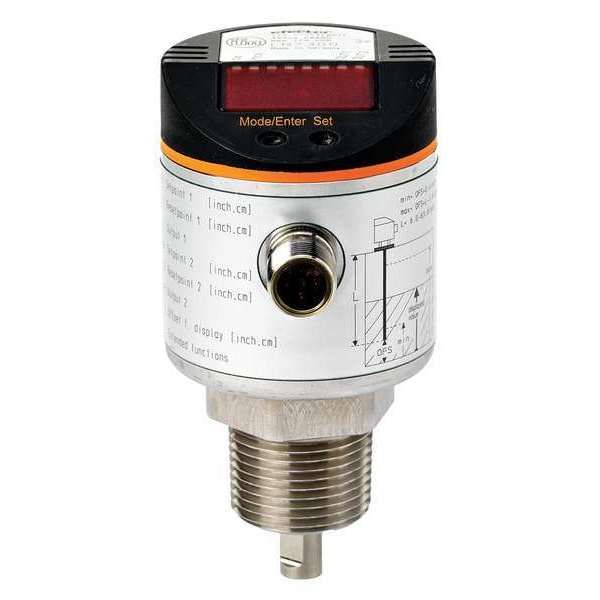

Ifm Level Sensor, G3/4 NPT LR3000 - main

Level Sensor, G3/4 NPT

  • Mfr # LR3000

  • Zoro # G6673335

product price: $701.99
/ea
Free Shipping & Returns

Key Features

Mounting
G3/4
Range
63 in
Accuracy
+/-7 mm
Resolution
5 mm
Overall Length
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3000
Zoro #
G6673335
UPC #
-
Country of Origin
Romania

Dimensions

Overall Length
2.5 in
Overall Dia.
1.96 in
Width
2.4 in
Height
3.4 in
Stem Length
63 in
Probe length L [mm]
100...1600
Connection Size
3/4 in
Float Diameter
1/4 in

Details

Item
Electronic Level Sensor
Mounting
G3/4
Range
63 in
Accuracy
+/-7 mm
Resolution
5 mm
Temp. Range
32 to 176 Degrees F
Input Voltage
18 to 30V DC
Enclosure Rating
IP67
Dead Band
5.9 in
Material
Stainless Steel
Display
LED
Body Material
Stainless Steel
Voltage
18 to 30V DC
Stem Material
316 Stainless Steel
Standards
IEC 61131-9 CDV
Product Type
Guided Wave Radar
Overload protection
yes
EMC
DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks
Set point SP [mm]
≥15...L-30
Operating voltage [V]
18...30 DC
Permanent current rating of switching output DC [mA]
200
Profiles
no profile
Number of digital outputs
1
Sampling rate [Hz]
4
MAWP (for applications according to CRN) [bar]
16
Full signal (current) [mA]
20
Materials (wetted parts)
stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre
UL approval
UL Approval no. H006 File number UL E174191
Media
Liquids
Required master port type
A
Min. load resistance [Ω]
2000
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Special feature
Gold-plated contacts
Reverse polarity protection
yes
IO-Link revision
1.1
Active range A [mm]
L-40; (when set to oil and oil based media: L-60)
Process connection
G 3/4 external thread
Dielectric constant of the medium
≥1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation)
Max. load [Ω]
500
Output function
normally open / normally closed; (parameterisable)
Analogue current output [mA]
4...20, invertible; (scalable)
Recommended media
water; hydrous media; oils; oil-based media
Reset point rP [mm]
≥10...L-35
Number of analogue outputs
1
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Repeatability [mm]
± 5
Communication interface
IO-Link
SIO mode
yes
Power-on delay time [s]
< 3
Vibration resistance
DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m
Analogue voltage output [V]
0...10, invertible; (scalable)
Measuring principle
guided wave radar
Protection
IP 67
Vacuum resistance [mbar]
-1000
Min. process cycle time [ms]
2.3
Total number of outputs
2
Ambient temperature [°C]
-25...60
Offset error [mm]
5
Process data binary
1
Pressure rating [bar]
16
Electrical design
PNP
SDCI standard
IEC 61131-9 CDV
Current consumption [mA]
< 30
Zero signal (voltage) [V]
0
Storage temperature [°C]
-40...80
Full signal (voltage) [V]
10
Resolution [mm]
1
Temperature drift per 10 K
± 0.2
Measuring error [mm]
± 7
Hysteresis [mm]
> 5
Protection class
III
Process temperature [°C]
-25...80; (90 < 1 h ; see note under remarks)
Type of short-circuit protection
thermal, pulsed
Max. voltage drop switching output DC [V]
2.5
Transmission type
COM2 (38,4 kBaud)
Zero signal (current) [mA]
4
Shock resistance
DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m
Short-circuit protection
yes
In steps of [mm]
5
Process data analogue
1
Inactive range I1 / I2 [mm]
30 / 10; (when set to oil and oil based media: 30 / 30)
Materials
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PBT; PC; PEI; TPE-V
MTTF [years]
196
Output signal
switching signal; analogue signal; IO-Link
Media Temperature - Maximum
176 Degrees F
For Media Type
Oils, Water
Mounting Orientation
Vertical
Nameplate Voltage
18/30V DC
Operating Pressure - Maximum
232 psi
Number of Outputs - Analog
1
Output Wire Configuration
4-Wire
Probe Material
316 Stainless Steel
Number of Outputs - Digital
1
Process temperature [°C]
-25...80; (90 < 1 h ; see note under remarks)
Ambient temperature [°C]
-25...60
Measuring principle
guided wave radar
Storage temperature [°C]
-40...80
Max. load [Ω]
500
Min. load resistance [Ω]
2000

Description

Electronic Level Sensor, Product Type Guided Wave Radar, Connection Size 3/4 in, For Media Type Oils, Water, Body Material Stainless Steel, Accuracy +/-7 mm, Range 63 in, Stem Length 63 in, Operating Pressure - Maximum 232 psi, Media Temperature - Maximum 176 Degrees F, Mounting Orientation Vertical, Enclosure Rating IP67, Number of Outputs - Analog 1, Float Diameter 1/4 in, Number of Outputs - Digital 1, Float Length Not Applicable, Output Wire Configuration 4-Wire, Probe Type Rod

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
