  11. Point Level Sensor, 113 mm L

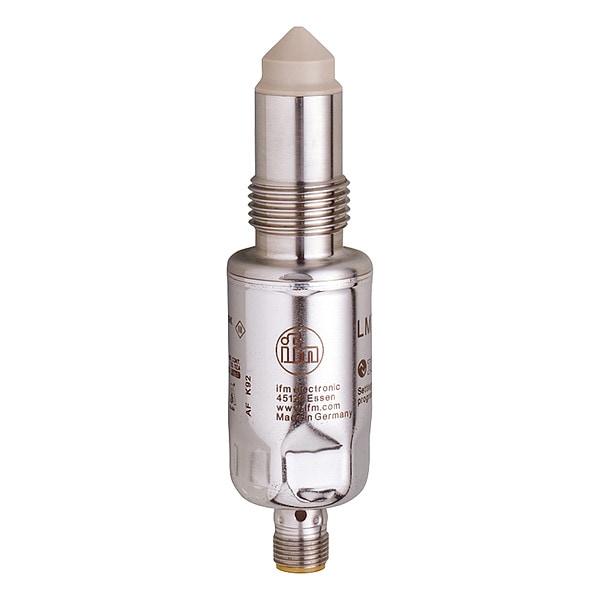

Ifm Point Level Sensor, 113 mm L LMT100 - main

Point Level Sensor, 113 mm L

  • Mfr # LMT100

  • Zoro # G507968954

product price: $303.99
/ea
Free Shipping & Returns

Key Features

Range
0.4 in
Accuracy
+/-2 mm
Overall Length
4.5 in
Display
switching status LED, yellow operating status LED, green
Stem Length
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMT100
Zoro #
G507968954
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
4.5 in
Stem Length
3/8 in
Connection Size
1/2 in
Probe length [mm]
11
Float Diameter
1/2 in

Details

Item
Point Level Sensor
Range
0.4 in
Accuracy
+/-2 mm
Display
switching status LED, yellow operating status LED, green
Body Material
Stainless Steel
Enclosure Rating
IP68, IP69K
Standards
3A, CA, CE, cULus, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, FDA, IEC 61131-9
Stem Material
316 Stainless Steel, PEEK
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Operating Pressure (Maximum)
40 bar
Media Temperature (Maximum)
100 Degrees C
Probe Material
PEEK
Product Type
Point Level Sensor
Overload protection
yes
Type of short-circuit protection
pulsed
Reverse polarity protection
yes
Factory setting
hydrous media
Current consumption [mA]
< 50
Short-circuit protection
yes
Process data binary
2
Materials
stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Electrical design
PNP/NPN
Response time [s]
< 0.5
Required master port type
A
Media
Liquids; viscous media; powder
MAWP (for applications according to CRN) [bar]
40
Protection class
III
Communication interface
IO-Link
IO-Link revision
1.1
Tank pressure [bar]
-1...40
UL approval
UL Approval no. H001
Profiles
Smart Sensor: Process Data Variable; Device Identification
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Measuring principle
capacitive
Materials (wetted parts)
PEEK; surface characteristics: Ra < 0,8 / Rz 4
Special feature
Gold-plated contacts
Medium temperature short time [°C]
-40...150; (1 h)
Number of inputs and outputs
Number of digital outputs: 2
Min. process cycle time [ms]
2.3
SIO mode
yes
Operating voltage [V]
18...30 DC
Medium temperature [°C]
-40...100
Vibration resistance
DIN EN 60068-2-6 20 g (10...2000 Hz)
Output signal
switching signal; IO-Link
Process connection
threaded connection G 1/2 sealing cone
Transmission type
COM2 (38,4 kBaud)
Total number of outputs
2
MTTF [years]
223
Storage temperature [°C]
-40...85
Output function
normally open / normally closed; (parameterisable)
Shock resistance
DIN EN 60068-2-27 50 g (11 ms)
Ambient temperature [°C]
-40...85
SDCI standard
IEC 61131-9
EMC
DIN EN 61000-6-2 DIN EN 61000-6-4 : open tanks DIN EN 61000-6-3 : closed tanks
Number of digital outputs
2
Process data analogue
1
Protection
IP 68; IP 69K
Output Wire Configuration
4-Wire
Operating Pressure - Maximum
580 psi
Number of Outputs - Digital
2
For Media Type
Nonhazardous Liquids, Powders, Viscous Fluids
Media Temperature - Maximum
100 Degrees F
Mounting Orientation
Horizontal, Vertical
Nameplate Voltage
18/30V DC
Medium temperature [°C]
-40...100
Medium temperature short time [°C]
-40...150; (1 h)
Ambient temperature [°C]
-40...85
Measuring principle
capacitive
Storage temperature [°C]
-40...85

Description

Point Level Sensor, Product Type Point Level Sensor, Connection Size 1/2 in, For Media Type Nonhazardous Liquids, Powders, Viscous Fluids, Body Material Stainless Steel, Accuracy +/-2 mm, Range 0.4 in, Stem Length 3/8 in, Operating Pressure - Maximum 580 psi, Media Temperature - Maximum 100 Degrees F, Mounting Orientation Horizontal, Vertical, Enclosure Rating IP68, IP69K, Float Diameter 1/2 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire
