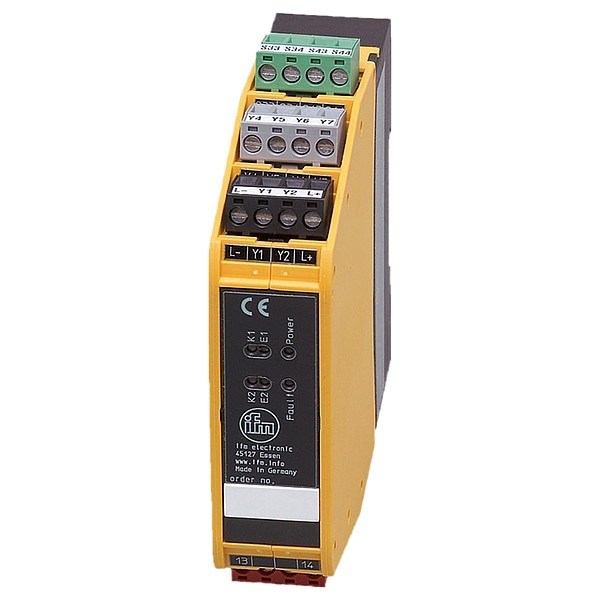

Programming and Diagnostic Module, 24VDC

Mfr # G1501S
Zoro # G9527141

217.99

/ea

Free Shipping & Returns

Key Features

Enclosure Material

Polyamide

IP Rating

IP20

Safety Output Configuration

2NO

Number of Inputs

Features

Automatic Start, Cross-Monitoring, Monitored Start, Signal Output via Potential-Free Relay Contacts, Simultaneity Monitoring

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: G1501S
Zoro #: G9527141
UPC #: -
Country of Origin: United States

Dimensions

Body Height - Relay: 3.93 in
Body Depth - Relay: 4.13 in
Width: 0.98"
Body Width - Relay: 0.98 in
Height: 3.93"
Depth: 4.13"
Overall Height - Relay: 4 in
Body Width: 0.98 in
Body Depth: 4.13 in
Overall Depth: 4 in
Body Height: 3.94 in

Details

Item: Safety Monitoring Relay
Enclosure Material: Polyamide
IP Rating: IP20
Safety Output Configuration: 2NO
Number of Inputs: 1
Features: Automatic Start, Cross-Monitoring, Monitored Start, Signal Output via Potential-Free Relay Contacts, Simultaneity Monitoring
Mounting - Relay: DIN Rail
Number of Pins - Relay: 16
Electrical Connection - Safety Monitoring Relay: Screw Terminal, Terminal Block Removable
Output Switch Configuration - Safety Monitoring Relay: (2) SPST-NO Instantaneous
Input Power Consumption (Burden): 1.2 W
AC Contact Rating - Relay: 6A @ 250 V
Input or Control Voltage: 24 V DC
Input Power: 24VDC
Mounting: DIN Rail
Number of Inputs - Safety Monitoring Relay: 1
Environmental Protection: Finger-Safe
Standards: CE Certified, cULus Listed, TUV Certified
DC Contact Rating - Relay: 6A @ 24 V
Item - Relay: Safety Monitoring Relay
Operating Temp.: -13 Degrees to 131 Degrees F
Use With - Safety Monitoring Relay: E Stop, Limit Switch, Two Hand Control
Delay Time - Safety Monitoring Relay: No Delay
Response Time - Safety Monitoring Relay: 30 msec
For Use With: Emergency Stop, Limit Switch, Two Hand Control
Input Voltage: 24V DC
Response Time: 30 msec
Electrical Connection - Relay: Screw Terminal, Terminal Block Removable
Output Switch Configuration - Relay: (2) SPST-NO Instantaneous
Response Time - Relay: 30 msec
Number of Inputs - Relay: 1
Delay Time - Relay: No Delay
Use With - Relay: E Stop, Limit Switch, Two Hand Control
Contact Rating (DC): 6 A @ 24V
Weight: 9.88 oz
Delay Type: Fixed
Electrical Connection: Screw Terminal, Terminal Block Removable
Contact Form: DPST-NO
Power Consumption: 1.2 W
Minimum Operating Temperature: -13 Degrees F
Status Indicator: LED Indicator
Number of Pins: 16
Contact Rating (AC): 6 A @ 250V
Maximum Operating Temperature: 131 Degrees F
Application: Industrial Automation
Output Switch Configuration: (2) NO Instantaneous
Safety Reliability Data: PFHd [1/h] Less Than 2.2E-09
Delay Time: 6 sec
Mounting Style: DIN Rail

Description

Safety Monitoring Relay, Coil Resistance Not Applicable, Contact Form DPST-NO, Delay Time 6 sec, Delay Type Fixed, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20, Input Voltage 24V DC, Mounting Style DIN Rail, Number of Inputs 1, Number of Pins 16, Output Switch Configuration (2) NO Instantaneous, Response Time 30 msec, Status Indicator LED Indicator, Standards CE Certified, cULus Listed, TUV Certified, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 24V
