  11. Sensor Wiring Block, 4 Pin, Receptacle

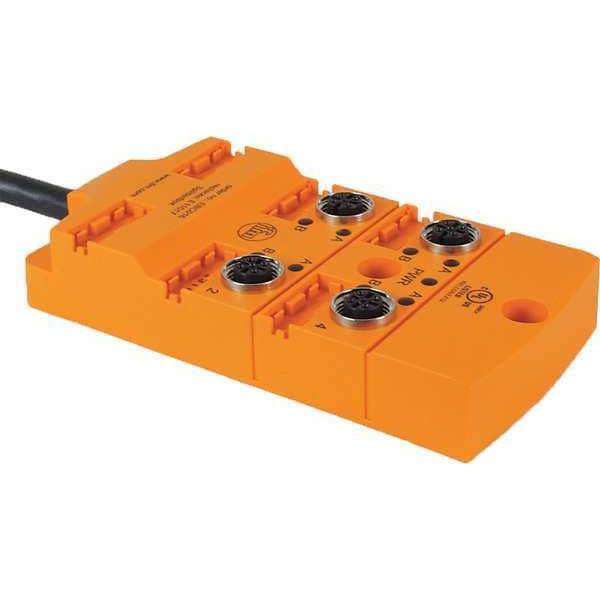

Ifm Sensor Wiring Block, 4 Pin, Receptacle EBC028 - main

Sensor Wiring Block, 4 Pin, Receptacle

  • Mfr # EBC028

  • Zoro # G6448093

product price: $195.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
4
Cable Length
10 m
Wire Size
24 AWG, 26 AWG
IP Rating
IP67, IP68
End 1 Gender and Plug End
Female Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EBC028
Zoro #
G6448093
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
10 m
Wire Size
24 AWG, 26 AWG
Thread Size
M12
Overall Width
22 mm
Overall Length
54 mm
Overall Height
82 mm

Details

Item
Sensor Wiring Block
End 1 Number of Pins
4
IP Rating
IP67, IP68
End 1 Gender and Plug End
Female Straight
End 1 Connection Type
Receptacle
Number of Conductors
3
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Max. Voltage
10 to 30VDC
End 1 Keyway
Single
Standards
UL and cULus Listed
End 2 Connection Type
Bare Wire
End 1 Thread
M12
Temp. Range
-25 Degrees to 80 Degrees C
Max. Amps
12 A
Color
Black
For Use With
Harsh Industrial Environment
Cable Jacket Color
Black
Connection Type
Receptacle
Gender
Female
Number of Cores
11
Number of Poles
5
Current Rating per Port
4 A
Minimum Operating Temperature
-25 Degrees C
Number of Ports
4
Resistance Properties
Coolant Resistant, Oil Resistant
Includes
(2) Protective Caps, (4) Labels
Cable Jacket Material
PUR
Maximum Operating Temperature
80 Degrees C
Voltage Rating
10-30V DC

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 10 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features (1) Green LED for Power, (8) Yellow LEDs for Switching Status, Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (4) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 3
