  11. Sensor Wiring Block, 6 Pin, Receptacle

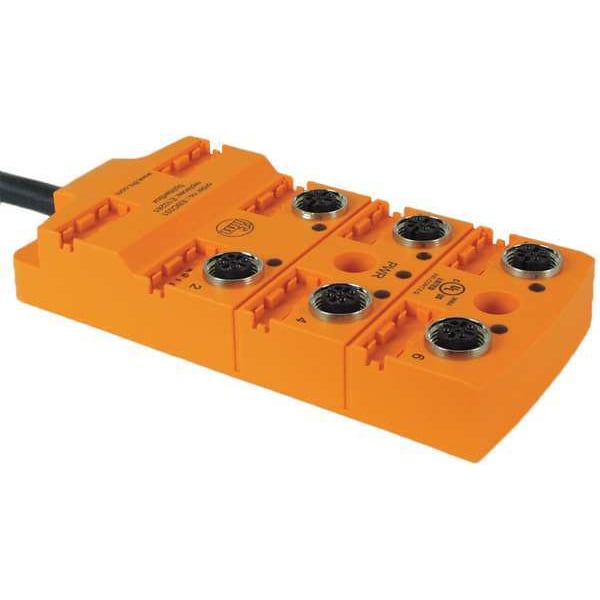

Ifm Sensor Wiring Block, 6 Pin, Receptacle EBC031 - main

Sensor Wiring Block, 6 Pin, Receptacle

  • Mfr # EBC031

  • Zoro # G6868513

product price: $128.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
6
Cable Length
10 m
Wire Size
27 AWG, 24 AWG
IP Rating
IP67, IP68
End 1 Gender and Plug End
Female Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EBC031
Zoro #
G6868513
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
10 m
Wire Size
27 AWG, 24 AWG
Overall Width
22 mm
Thread Size
M12
Overall Length
54 mm
Overall Height
100 mm

Details

Item
Sensor Wiring Block
End 1 Number of Pins
6
IP Rating
IP67, IP68
End 1 Gender and Plug End
Female Straight
Number of Conductors
3
Max. Voltage
10 to 30VDC
End 1 Connection Type
Receptacle
Standards
UL and cULus Listed
Temp. Range
-25 Degrees to 80 Degrees C
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
End 2 Connection Type
Bare Wire
End 1 Thread
M12
Max. Amps
12 A
End 1 Keyway
Single
Color
Black
For Use With
Harsh Industrial Environment
Gender
Female
Cable Jacket Color
Black
Number of Ports
6
Cable Jacket Material
PUR
Number of Poles
5
Includes
(2) Protective Caps, (6) Labels
Number of Cores
9
Resistance Properties
Coolant Resistant, Oil Resistant
Current Rating per Port
4 A
Connection Type
Receptacle
Maximum Operating Temperature
80 Degrees C
Minimum Operating Temperature
-25 Degrees C
Voltage Rating
10-30 V DC

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 10 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features (1) Green LED for Power, (6) Yellow LEDs for Switching Status, Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (6) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 3
