Ifm

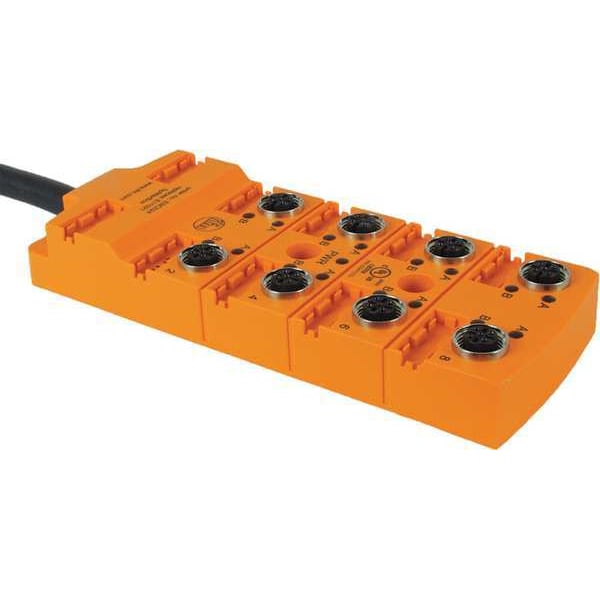

Sensor Wiring Block, 8 Pin, Receptacle

product price: $254.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 5 m
  • Jacket Color Black
  • End 1 Number of Pins 8
  • Max. Voltage 10-30V DC
  • End 1 Thread M12
See all product information

Product Information

Dimensions

Cable Length 5 m
Wire Size 24 AWG/24 AWG
Thread Size M12
Overall Length 54 mm
Overall Width 22 mm
Overall Height 127 mm

Details

Item Sensor Wiring Block
Jacket Color Black
End 1 Number of Pins 8
Max. Voltage 10-30V DC
End 1 Thread M12
End 1 Connection Type Receptacle
End 2 Connection Type Bare Wire
IP Rating IP 67, IP 68
Max. Amps 12 A
Number of Conductors 3
End 1 Gender and Plug End Female Straight
Features (1) Green LED for Power, Gold-Plated Contacts, Molded PA Body, PNP Electrical Design
Jacket Material PUR
Temp. Range -25 Degrees to 80 Degrees C
End 1 Keyway Single
Standards UL and cULus Listed
Cable Jacket Material PUR
Current Rating per Port 4 A
Current Rating 12 A
Maximum Operating Temperature 80 Degrees C
With LED Display Yes
Number of Ports 8
Sensor Type PNP
Number of Poles 5
Includes (2) Protective Caps, (8) Labels
Minimum Operating Temperature -25 Degrees C
Electrical Connection - Slot 5 Pole M12 Female
Number of Cores 19
Cable Jacket Color Black
Resistance Properties Coolant Resistant, Oil Resistant
Connection Type Receptacle
Gender Female
Voltage Rating 10-30 V DC
Cable Type Black PUR

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 5 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features (1) Green LED for Power, (16) Yellow LEDs for Switching Status, Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (8) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 3
