  11. Sensor Wiring Block, 8 Pin, Receptacle

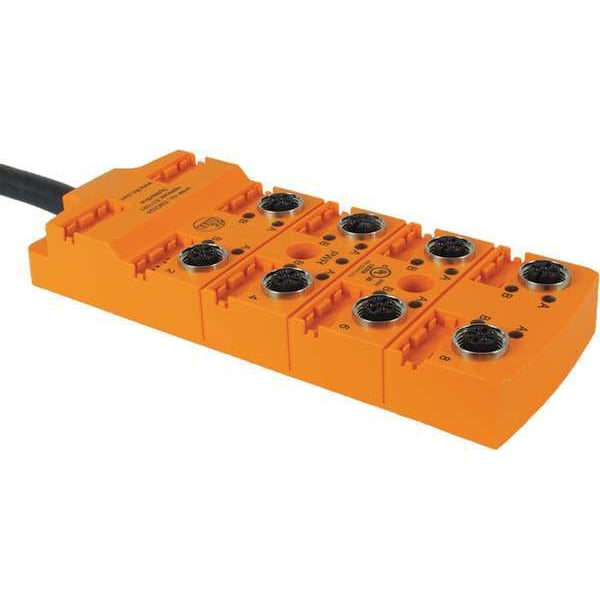

Ifm Sensor Wiring Block, 8 Pin, Receptacle EBC033 - main

Sensor Wiring Block, 8 Pin, Receptacle

  • Mfr # EBC033

  • Zoro # G6443884

product price: $178.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
8
Cable Length
10 m
Wire Size
31 AWG, 24 AWG
IP Rating
IP67, IP68
Max. Voltage
30VAC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EBC033
Zoro #
G6443884
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
10 m
Wire Size
31 AWG, 24 AWG
Overall Height
127 mm
Thread Size
M12
Overall Length
54 mm
Overall Width
22 mm

Details

Item
Sensor Wiring Block
End 1 Number of Pins
8
IP Rating
IP67, IP68
Max. Voltage
30VAC/DC
Temp. Range
-25 Degrees to 80 Degrees C
End 1 Keyway
Single
End 2 Connection Type
Bare Wire
End 1 Thread
M12
End 1 Gender and Plug End
Female Straight
Number of Conductors
3
Standards
UL and cULus Listed
Max. Amps
12 A
End 1 Connection Type
Receptacle
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Color
Black
For Use With
Harsh Industrial Environment
Connection Type
Receptacle
Resistance Properties
Coolant Resistant, Oil Resistant, Shock Resistant, Vibration Resistant
Cable Jacket Color
Black
Includes
(2) Protective Caps, (8) Labels
Number of Ports
8
Gender
Female
Number of Poles
5
Number of Cores
11
Cable Jacket Material
PUR
Voltage Rating
30 V AC/DC
Current Rating per Port
4 A
Maximum Operating Temperature
80 Degrees C
Minimum Operating Temperature
-25 Degrees C

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 10 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (8) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 3, Number of Cores 11, Number of Poles 5, Number of Ports 8
