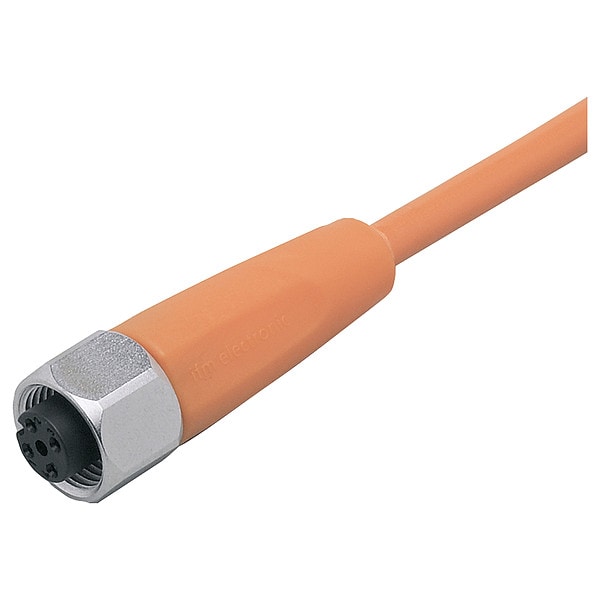

Ifm Single-Ended Cordset, 25 m L Cable EVT003 - main

Single-Ended Cordset, 25 m L Cable

  • Mfr # EVT003

  • Zoro # G407877585

product price: $56.89
/ea

Key Features

End 1 Number of Pins
5
Cable Length
25 m
Wire Size
0.34 mm²
IP Rating
IP65, IP67, IP68, IP69K
Max. Voltage
250 V AC, 300 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EVT003
Zoro #
G407877585
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
25 m
Wire Size
0.34 mm²
Dimensions [mm]
15.5 x 15.5 x 45

Details

Item
Cordset
End 1 Number of Pins
5
IP Rating
IP65, IP67, IP68, IP69K
Max. Voltage
250 V AC, 300 V DC
End 2 Connection Type
Bare Wire
Application
hygienic and wet areas in the food industry
End 1 Connection Type
M12
Max. Amps
4 A
Features
For use in Sanitary and Wet Areas in the Food Industry, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism, Wide Operating Temperature Range and High Protection Rating
Standards
CE, cULus, EAC, UKCA
Maximum Operating Temperature
212 Degrees F
End 1 Gender
Female
End 1 Mounting Orientation
Straight
Minimum Operating Temperature
-13 Degrees F
Cable Jacket Color
Orange
End 1 Number of Keyways
1
Cable Jacket Material
PVC
Number of Wires
4
Materials
housing: PVC orange; Sealing: EPDM
Protection class
II
Connection
Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Material nut
stainless steel (1.4404 / 316L)
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Special feature
Free from silicone; Gold-plated contacts; Drag chain suitability
Storage humidity [%]
10...100
Max. current load total [A]
4
Operating voltage [V]
< 250 AC / < 300 DC
Ambient temperature (moving) [°C]
5...100
Ambient temperature [°C]
-25...100
Electrical connection
Cable: 25 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Storage temperature [°C]
-25...55
Product Type
Single Ended

Description

Single-Ended Cordset, End 1 Gender Female, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 25 m, Cable Jacket Color Orange, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 0.34 sq mm, Maximum Operating Temperature 212 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, EAC, UKCA
