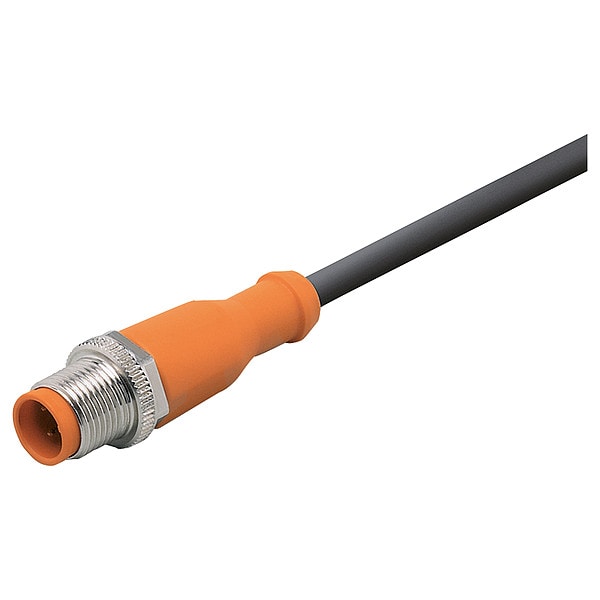

Single-Ended Cordset, 5 m L Cable

  • Mfr # EVC077
  • Zoro # G207877730
product price:
$
32.95
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
4
Wire Size
0.34 mm²
Cable Length
5 m
Cable Jacket Material
PUR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVC077
Zoro #
G207877730
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size
0.34 mm²
Cable Length
5 m
Dimensions [mm]
15.5 x 15.5 x 49.5
Fits Chest Size
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
4
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP68, IP69K
Max. Amps
4 A
Maximum Operating Temperature
194 Degrees F
Max. Voltage
250 V AC, 300 V DC
End 2 Connection Type
Bare Wire
Standards
CE, cULus, EAC, UKCA
Features
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism
End 1 Connection Type
M12
End 1 Number of Keyways
1
Cable Type
Round
End 1 Gender
Male
Number of Wires
4
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Straight
Storage temperature [°C]
-25...55
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Connection
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Material nut
brass, nickel-plated
Operating voltage [V]
< 250 AC / < 300 DC
Storage humidity [%]
10...100
Ambient temperature (moving) [°C]
-25...90
Materials
housing: TPU orange
Protection class
II
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Max. current load total [A]
4
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Ambient temperature [°C]
-25...90

Description

Single-Ended Cordset, End 1 Gender Male, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 0.34 sq mm, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, EAC, UKCA
