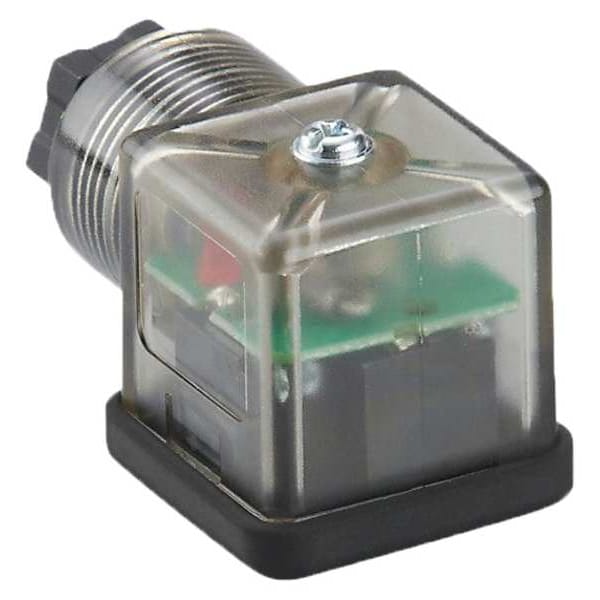

Solenoid Coil Connector, 3 Pin, 16 mm

  • Mfr # E12224

  • Zoro # G503509021

product price:  $20.95
/ea

Key Features

Standards
CE Certified, UKCA
For Use With
Form A DIN Connector Valves
Lead Type
Molded Wire
Coil Termination
DIN EN 175301-803
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E12224
Zoro #
G503509021
UPC #
-
Country of Origin
Poland

Dimensions

For Coil Size
16 mm

Details

Standards
CE Certified, UKCA
Item
Solenoid Coil Connector
For Use With
Form A DIN Connector Valves
Lead Type
Molded Wire
Coil Termination
DIN EN 175301-803
Voltage
24V DC
Indicating Light
Yes
Connection
Connector: 1 x valve type A DIN, angled
Ambient temperature [°C]
-40...125
Max. current load total [A]
16
Protection
IP 65
Materials
housing: PA transparent; end cap: PA black; Sealing: NBR black
Operating voltage [V]
< 24 DC
Electrical connection
terminals: 4 x ...1.5 mm²; Cable sheath: Ø 6...8 mm
Special feature
Free from silicone
Compatible Series
Form A
Compatible Manufacturer Model Number
EVC001, EVC002, EVC005
Connection Type
Molded Wires
IP Rating
IP65
Includes Light
Indicator Light Included
Product Type
Solenoid Coil Connector
Plug Type
3 Pin
DIN Coil Termination
DIN 43650 Form A
Operating Temperature - Maximum
257 Degrees F
Includes Leads
Leads Not Included
Operating Temperature - Minimum
-40 Degrees F

Description

Solenoid Coil Connector, Indicating Light Yes, Voltage 24V DC, Lead Type Molded Wire, Standards CE Certified, UKCA, For Use With Form A DIN Connector Valves, Coil Termination DIN EN 175301-803
