  9. Temp Transducer, 1-31/32 in., 1/4 in. NPT

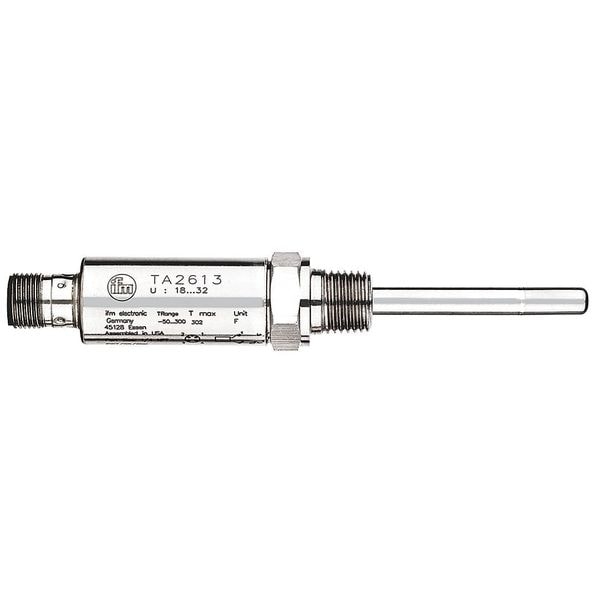

Ifm Temp Transducer, 1-31/32 in., 1/4 in. NPT TA2613 - main

Temp Transducer, 1-31/32 in., 1/4 in. NPT

  • Mfr # TA2613

  • Zoro # G0528477

product price: $234.99
/ea
Free Shipping & Returns

Key Features

IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
1/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TA2613
Zoro #
G0528477
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
1.97 in
Manufacturers Warranty Length
5 yr
Probe Dia.
15/64 in
Overall Length
4.95 in
Probe Diameter
0.23 in
Process Connection Size
1/2 in
Overall Height
125.7 mm

Details

Item
Temperature Transducer
IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
1/4 in NPT
Power Source
18 to 32V DC
Temp. Range
0 to 300 Degrees F
Standards
CE, cUL Listed, EAC, IO-Link
Mounting
Adapter
Electrical Connections
4-Pin M12 Connector
Power Required
18 to 32V DC
Response Time
0.33 sec
For Use With
24V DC Power Supplies, Cables for Increased Current Rating, Female Cordsets, Female Wire Connectors, IO-Link Accessories, IO-Link-Din Rail Mountable Masters for Control Cabinets, IO-Link-Displays, IO-Link-Field Mountable Masters for High Pressure Cleaning, IO-Link-Field Mountable Masters for Industrial Automation, LR Device, Moneo Configure, Patchcords, Signaling and Display Systems, Y-Splitters
Features
Gold-Plated Contacts, High Protection Rating
Display
LED
Sensing Element Type
Pt1000 RTD
Maximum Sensed Temperature
302 Degrees F
Storage Temperature Range
-40 Degrees C to 100 Degrees C
Series
TA
Process Connection Type
NPT
Repeatability
+/-0.1%
Temperature Accuracy
+/-0.3K + 0.1% Mid-Scale, +/-0.54 Degrees F + 0.1% Mid-Scale
Power Type
Electrical
Minimum Operating Temperature
0 Degrees F
Display Type
Analog
Temperature Output
4 to 20mA DC
Maximum Operating Temperature
300 Degrees F
Weight
92 g
Enclosure Material
Stainless Steel
Minimum Sensed Temperature
-58 Degrees F
Input Voltage
18 to 32V DC
Display Screen Type
No Display
Mounting Style
Wall Mount
Temperature Sensor
Pt1000 RTD
Operating Temperature - Minimum
0 Degrees F
Process Media Temperature Measurement - Minimum
-58 Degrees F
Operating Temperature - Maximum
300 Degrees F
Process Media Temperature Measurement - Maximum
302 Degrees F
Output Power
4 to 20mA DC

Description

Temperature Transducer, Maximum Sensed Temperature 302 Degrees F, Minimum Sensed Temperature -58 Degrees F, Temperature Accuracy +/-0.3K + 0.1 Percent Mid-Scale, +/-0.54 Degrees F + 0.1 Percent Mid-Scale, Power Required 18 to 32V DC, Electrical Connections 4-Pin M12 Connector, Overall Length 4.95 in, IP Rating IP67, IP68, IP69K, Series TA, Output 4 to 20mA DC, Humidity Accuracy Not Applicable, Probe Length 1.97 in, Sensing Element Type Pt1000 RTD, Display LED, Display Type Analog
