  9. Temperature Transducer, 5-29/32 in., LED

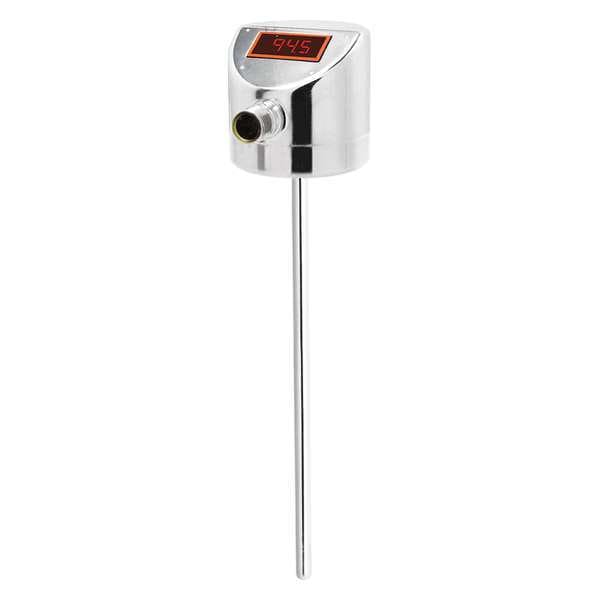

Ifm Temperature Transducer, 5-29/32 in., LED TD2243 - main

Temperature Transducer, 5-29/32 in., LED

  • Mfr # TD2243

  • Zoro # G0528425

product price: $294.99
/ea
Free Shipping & Returns

Key Features

IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
6 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TD2243
Zoro #
G0528425
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
5.9 in
Manufacturers Warranty Length
5 yr
Probe Dia.
15/64 in
Overall Length
2.48 in
Process Connection Size
6 mm
Overall Height
7.8 in
Probe Diameter
0.23 in
Conduit Connection Size
6 mm
Overall Width
1.97 in

Details

Item
Sanitary Temperature Transmitter
IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
6 mm
Power Source
18 to 32V DC
Temp. Range
0 to 300 Degrees F
Standards
CE, cUL Listed, EAC, EC 1935/2004, EHEDG Certified, FCM, FDA Approved, IO-Link
Response Time
0.33 sec
Display
4 Digit LED
Electrical Connections
4-Pin M12 Connector
Power Required
18 to 32V DC
Enclosure Rating
IP67, IP68, IP69K
For Use With
24V DC Power Supplies, Cables for Increased Current Rating, Female Cordsets, Female Wire Connectors, IO-Link Accessories, IO-Link-Displays, IO-Link-Field Mountable Masters for High Pressure Cleaning, LR Device, Moneo Configure, Mounting Adapters for Industrial Applications, Patchcords, Signaling and Display Systems, Thermowells for Temperature Sensor, Welding Adapter, Y-Splitters
Features
Short Power-on Delay Time, High Protection and Pressure Rating, Precise Analog Output and User-Friendly Communication Via Io-Link
Sensing Element Type
Pt1000 RTD
Maximum Sensed Temperature
300 Degrees F
RoHS Compliant
Yes
Series
TD
Temperature Accuracy
+/-0.54 Degrees F, 0.1%
Minimum Ambient Temperature
-25 Degrees C
Maximum Ambient Temperature
80 Degrees C
Minimum Sensed Temperature
0 Degrees F
Storage Temperature Range
-40 Degrees C to 100 Degrees C
Process Media Temperature Measurement - Minimum
0 Degrees F
Temperature Sensor
Pt1000 RTD
Operating Temperature - Maximum
80 Degrees C
Operating Temperature - Minimum
-25 Degrees C
Input Voltage
18 to 32V DC
Process Media Temperature Measurement - Maximum
300 Degrees F
Display Screen Type
LED
Output Power
4 to 20mA DC
Process Connection Type
clamp fitting 6mm diameter

Description

Sanitary Temperature Transmitter, Maximum Sensed Temperature 300 Degrees F, Minimum Sensed Temperature 0 Degrees F, Temperature Accuracy +/-0.54 Degrees F, 0.1 Percent, Power Required 18 to 32V DC, Electrical Connections 4-Pin M12 Connector, Overall Length 2.48 in, IP Rating IP67, IP68, IP69K, Series TD, Output 4 to 20mA DC, Display 4 Digit LED, Probe Length 5.9 in, Sensing Element Type Pt1000 RTD, Conduit Connection Size 6 mm, Enclosure Rating IP67, IP68, IP69K
