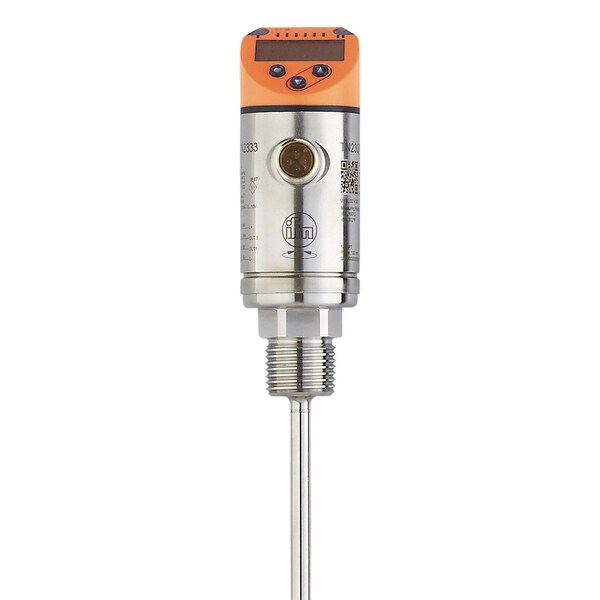

Temperature Transmitter, 18-32V DC

  • Mfr # TN2333

  • Zoro # G522808617

product price:  $455.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
18 to 32V DC
Process Connection Gender
Male
Output Power
4 to 20mA
Overall Length
192 mm
Manufacturers Warranty Length
5 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TN2333
Zoro #
G522808617
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
192 mm
Manufacturers Warranty Length
5 yr
Process Connection Size
1/2 in
Probe Diameter
6 mm
Overall Diameter
34 mm
Probe Length
83.4 mm
Wire Rope Length
192 mm

Details

Input Voltage
18 to 32V DC
Process Connection Gender
Male
Output Power
4 to 20mA
Operating Temperature - Minimum
-25 Degrees C
Temperature Accuracy
+/-0.3 Degrees C
Temperature Sensor
Pt 1000 RTD
IP Rating
IP67
Process Connection Type
NPT
Transmission Type
COM2 (38.4 kBaud)
Item
Temperature Transmitter
Process Media Temperature Measurement - Maximum
150 Degrees C
Display Screen Type
LED
Features
Clearly Visible LEDs for Switching Status Indication, Intuitive and User-Friendly 3-Pushbutton Control, Red/Green Display for Clear Identification of the Acceptable Range, Very Large Temperature Evaluation Range, With Switching Output, Analogue Signal and Io-Link
Enclosure Material
316 Stainless Steel
Process Media Temperature Measurement - Minimum
-50 Degrees C
Communication Interface
IO-Link
Operating Temperature - Maximum
80 Degrees C
Standards
CE; cULus Listed; UKCA
Mounting Style
Pipe Mount, Tank Mount
Electrical Connection
4-Pin M12 Connector

Description

Temperature Transmitter, Temperature Accuracy +/-0.3 Degrees C, Overall Length 192 mm, IP Rating IP67, Probe Length 83.4 mm, Enclosure Material 316 Stainless Steel, Features Clearly Visible LEDs for Switching Status Indication, Intuitive and User-Friendly 3-Pushbutton Control, Red/Green Display for Clear Identification of the Acceptable Range, Very Large Temperature Evaluation Range, With Switching Output, Analogue Signal and Io-Link
