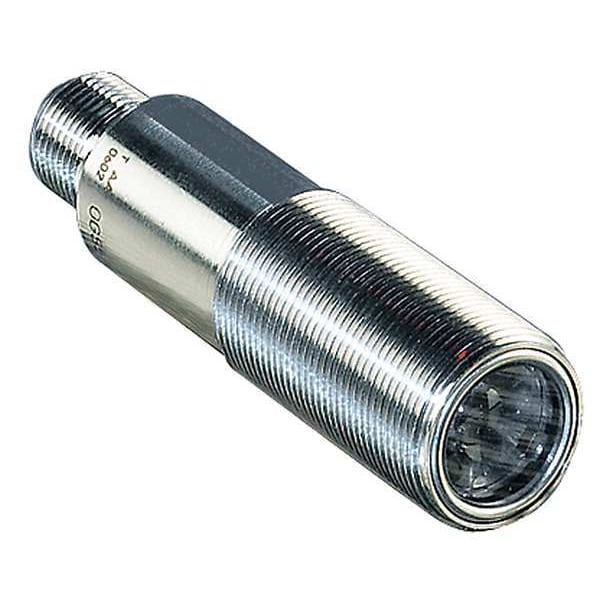

Through-Beam Photoelectric Sensor Receiver, M12, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

  • Mfr # OGE503
  • Zoro # G6988326
product price:
$
77.75
/ea

Key Features

Sensing Method
Through-Beam
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Overall Diameter
18 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OGE503
Zoro #
G6988326
UPC #
-
Country of Origin
Germany
Item
Photoelectric Sensor Receiver
Sensing Method
Through-Beam
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
IP Rating
IP67
Output Circuit Type
NPN
DC Voltage Rating
10-36V DC
Standards
CE, cULus, UKCA
Operating Frequency
1,000 Hz
Light Source
Red LED
Operating Temp. Range
-25 Degrees to 80 Degrees C
Features
Overload Protection, PMMA Lens, Reverse Polarity Protection
Max. Load Current
200 mA
Power Requirement - Cylindrical Photoelectric Sensor
10 to 36V DC
Power Requirement
10 to 36VDC
Max. Sensing Distance - Cylindrical Photoelectric Sensor
25 m
Body Material
Stainless Steel
Product Type
Photoelectric Sensor Receiver
Sensing Distance - Minimum
0 m
NEMA Enclosure Rating
No Enclosure
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
176 Degrees F
Load Current - Maximum
200 mA
Emitted Sensor Light
Red Light
Electrical Installation Type
Direct Connector
Number of Pins
4
Sensing Distance - Maximum
25 m
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
1 kHz
Container Type
Cylindrical
Sensor Body Style
Cylindrical

Dimensions

Overall Diameter
18 mm
Diameter
18mm
Length - Cylindrical Photoelectric Sensor
72 mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Length
72.00mm
Overall Height
72 mm
Sensor Diameter
18 mm
Fits Chest Size
Overload Protection, PMMA Lens, Reverse Polarity Protection

Description

Photoelectric Sensor Receiver, Sensing Method - Cylindrical Photoelectric Sensor Through Beam Receiver, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 25 m
