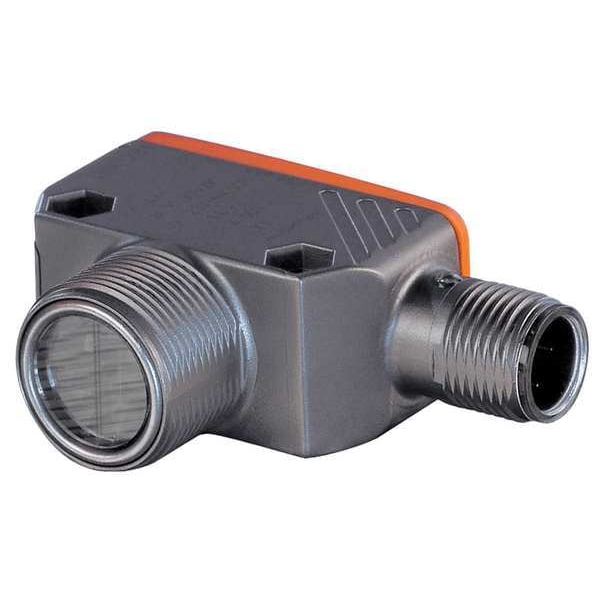

Ifm Through-Beam Photoelectric Sensor Receiver, M12, Right Angle, Rectangular, Dark On, NPN OGE282 - main

Through-Beam Photoelectric Sensor Receiver, M12, Right Angle, Rectangular, Dark On, NPN

  • Mfr # OGE282

  • Zoro # G6835315

product price:  $63.65
/ea

Key Features

Sensing Method
Through-Beam
Width
18.00mm
Depth
52.00mm
Output Circuit Type
NPN
DC Voltage Rating
10-30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OGE282
Zoro #
G6835315
UPC #
-
Country of Origin
Germany

Dimensions

Width
18.00mm
Depth
52.00mm
Length
35.40mm
Width - Rectangular Photoelectric Sensor
18 mm
Height - Rectangular Photoelectric Sensor
35 mm
Depth - Rectangular Photoelectric Sensor
52 mm
Overall Height
53 mm
Overall Width
19 mm
Overall Depth
36 mm

Details

Item
Photoelectric Sensor Receiver
Sensing Method
Through-Beam
Output Circuit Type
NPN
DC Voltage Rating
10-30V DC
Standards
CE, cULus, IEC, UKCA
Max. Load Current
200 mA
Operating Temp. Range
-25 Degrees to 60 Degrees C
Max. Sensing Distance
20m
Features
Overload Protection, PMMA Lens, Reverse Polarity Protection
Power Requirement - Rectangular Photoelectric Sensor
10 to 30V DC
IP Rating
IP65, IP67
Operating Frequency
1,000 Hz
Body Material
Zinc
Electrical Connection
M12
Max. Sensing Distance - Rectangular Photoelectric Sensor
20 m
Power Requirement
10 to 30VDC
Light Source
Red LED
Response Time
2.5 msec
Orientation
Right Angle
Sensing Distance - Maximum
20 m
Operating Mode
Dark On
Operating Temperature - Maximum
140 Degrees F
Switching Frequency
1 kHz
Sensing Distance - Minimum
0 m
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Direct Connector
Number of Pins
4
Style
Rectangular
Emitted Sensor Light
Red Light
NEMA Enclosure Rating
No Enclosure
Load Current - Maximum
200 mA

Description

Photoelectric Sensor Receiver, Operating Mode - Photoelectric Sensor Dark On
