Shop IFM

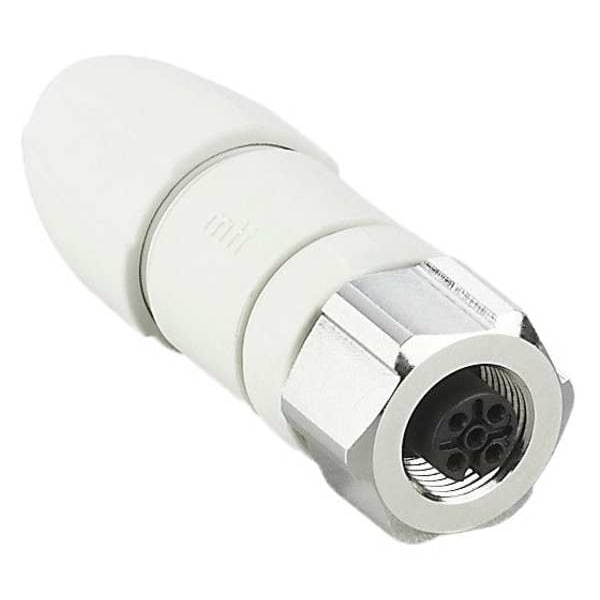

Wireable M12 connector

  • Mfr # EVF569

  • Zoro # G403509008

product price:  $35.49
/ea

Key Features

Number of Contacts
5 Socket
Mounting Style
Female Thread
Application
DC Power, Gigabit Internet, Sensors, Signal
Standards
CE, cRUus, EAC
Cable Outside Diameter
6 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVF569
Zoro #
G403509008
UPC #
-
Country of Origin
United States

Dimensions

Cable Outside Diameter
6 mm
Thread Size
M12
Conductor Cross Section Size
1.04 sq mm

Details

Number of Contacts
5 Socket
Mounting Style
Female Thread
Application
DC Power, Gigabit Internet, Sensors, Signal
Standards
CE, cRUus, EAC
Item
M12 Circular Connector
Maximum Operating Temperature
212 Degrees F
Includes Nut
Yes
Voltage Rating
60V AC, 60V DC
Connector Orientation
Straight
IP Rating
IP65, IP67, IP68, IP69K
Connector Body Type
Socket
Minimum Operating Temperature
-13 Degrees F
Number of Poles
5
Connection Type
Gold-Plated Contacts
Locking Style
Screw Connection
Housing Material
Nylon
Nominal Current
4 A
Coding
A

Description

M12 Circular Connector, Mounting Style Female Thread, Application DC Power, Gigabit Internet, Sensors, Signal, Number of Poles 5, Coding A, Mounting Type Front Mounting, Connection Type Gold-Plated Contacts, Thread Size M12, Voltage Rating 60V AC, 60V DC, Nominal Voltage 60V AC, 60V DC, Nominal Current 4 A, Locking Style Screw Connection, Housing Material Nylon, Includes Nut Yes, Connector Body Type Socket, Conductor Cross Section Size 1.04 sq mm, Cable Outside Diameter 6 mm
