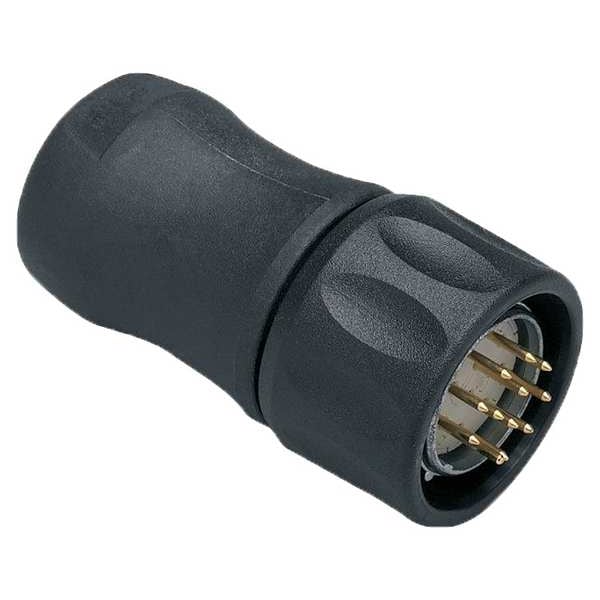

Wireable M23 connector
Mfr # E60123
Zoro # G103509032
product price:Â $82.75
/ea
Free Shipping & Returns
Key Features
Number of Contacts
12 Pin
Mounting Style
Male Thread
Application
Incremental Encoders
Thread Size
M23
Minimum Operating Temperature
-40 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
E60123
Zoro #
G103509032
UPC #
-
Country of Origin
Germany
Dimensions
Thread Size
M23
Details
Number of Contacts
12 Pin
Mounting Style
Male Thread
Application
Incremental Encoders
Item
M23 Circular Connector
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
4.5 to 30V DC
Maximum Operating Temperature
257 Degrees F
Housing Finish
Plastic-Coated
IP Rating
IP67
Connection Type
Cable Connection Due to Soldering
Connector Orientation
Straight
Housing Material
Brass, Nylon
Number of Poles
12
Locking Style
Screw Connection
Connector Body Type
Pin
Includes Nut
Yes
Description
M23 Circular Connector, Mounting Style Male Thread, Application Incremental Encoders, Number of Poles 12, Connection Type Cable Connection Due to Soldering, Thread Size M23, Voltage Rating 4.5 to 30V DC, Nominal Voltage 4.5 to 30V DC, Locking Style Screw Connection, Housing Material Brass, Nylon, Housing Finish Plastic-Coated, Includes Nut Yes, Connector Body Type Pin, Connector Orientation Straight, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
