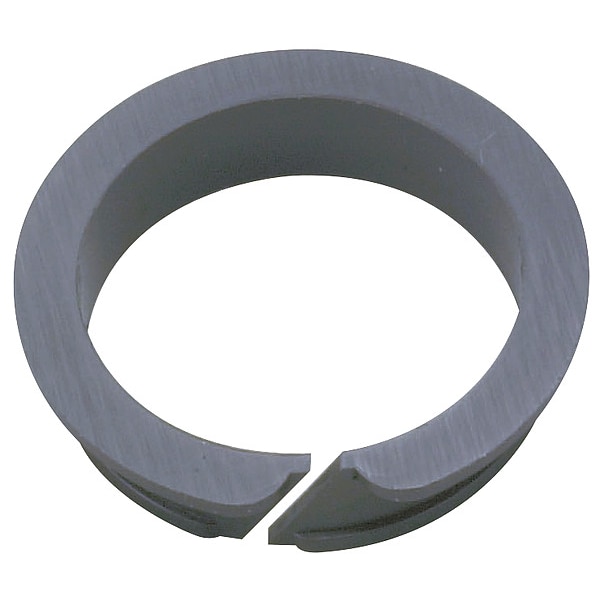

Clip Bearing, 6 mm Bore, 2 Flange, PK5
Mfr # MCM-06-02
Zoro # G3255944
product price: $7.35
/pk 5, $1.47/eaKey Features
Small Flange Dia. (mm)
7.8 mm
Min. Housing Dia. (mm)
7.2 mm
Flange Thickness (mm)
0.6 mm
Outside Dia. (mm)
7.2 mm
Application
For Fitting Shafts Through Sheet Metal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MCM-06-02
Zoro #
G3255944
UPC #
-
Country of Origin
Germany
Dimensions
Small Flange Dia. (mm)
7.8 mm
Min. Housing Dia. (mm)
7.2 mm
Flange Thickness (mm)
0.6 mm
Outside Dia. (mm)
7.2 mm
Min. Shaft Dia. (mm)
5.98 mm
Inside Dia. (mm)
6 mm
Large Flange Dia. (mm)
11 mm
Max. Shaft Dia. (mm)
6 mm
Inside Height (mm)
1.45
Outside Height (mm)
3.2 mm
Max. Housing Dia. (mm)
7.42 mm
Material Thickness (mm)
1.45 mm to 2.34 mm
Outside Diameter
11 mm
Minimum Shaft Diameter
5.98 mm
Large Flange Diameter
11 mm
Maximum Housing Diameter
7.42 mm
Small Flange Diameter
7.8 mm
Flange Thickness
0.6 mm
For Material Thickness
1.45 mm to 2.34 mm
Maximum Shaft Diameter
6 mm
Outside Height
3.2 mm
Minimum Housing Diameter
7.2 mm
Inside Diameter
6 mm
Inside Height
2 mm
For Material Thickness Range
1.45 to 2.34 mm
Overall Length
3.2 mm
For Shaft Size
5.975 to 6 mm
Bore Diameter
6 mm
Description
Clip Bearing, Bore Diameter 6 mm, Flange Type Double Flange, For Housing Bore Range 7.2 to 7.42 mm, For Material Thickness Range 1.45 to 2.34 mm, For Shaft Size 5.975 to 6 mm, Material Group Plastic, Maximum PV 3,400 lb/sq in-fpm, Number of Flanges 2, Outside Diameter 11 mm, Overall Length 3.2 mm, Plain Bearing Material iglide Polymer, System of Measurement Metric, Application For Fitting Shafts Through Sheet Metal, Color Anthracite, Flange Thickness 0.6 mm, Large Flange Diameter 11 mm
