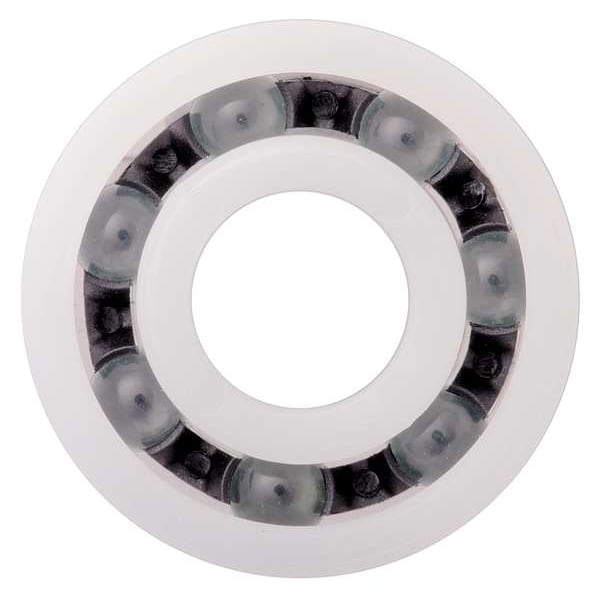

Polymer Ball Brg, 6001, 12mm Bore, Polymer

  • Mfr # B6001B1G

  • Zoro # G3279735


product price: $22.59
/ea

Key Features

Bore Dia. (mm)
12 mm
Outside Dia. (mm)
28 mm
Width (mm)
8 mm
Cage Material
Thermoplastic
Includes
Glass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B6001B1G
Zoro #
G3279735
UPC #
-
Country of Origin
Germany

Dimensions

Bore Dia. (mm)
12 mm
Outside Dia. (mm)
28 mm
Width (mm)
8 mm
Bore Diameter
12 mm
Outer Ring Width
8 mm
Outside Diameter
28 mm

Details

Cage Material
Thermoplastic
Includes
Glass
Static Load Capacity (N)
105 N
Item
Polymer Ball Bearing
Agency Compliance
1750
Dynamic Load Capacity (N)
147 N
Temp. Range (F)
-50 Degrees to 176 Degrees F
Includes Retaining Ring
No
Ball Material
Glass
Standards
1750
Retaining Ring Groove
No
System of Measurement
Metric
Application
Plastic Bearings
Bearing Industry Number
6001
Minimum Temperature
-40 Degrees C
Dynamic Radial Load Capacity
147 N
Ring Material
Polymer
Resistance Properties
Corrosion Resistant
Maximum Speed
2,000 RPM
Closure
Open
Static Radial Load Capacity
130 N
Cage Material Grade
Polyamide
Maximum Temperature
80 Degrees C

Description

Polymer Ball Bearing, Bearing Industry Number 6001, Bore Diameter 12 mm, Closure Open, Outer Ring Width 8 mm, Outside Diameter 28 mm, Ring Material Polymer, System of Measurement Metric, Cage Material Thermoplastic, Application Plastic Bearings, Ball Material Glass, Cage Material Grade Polyamide, Dynamic Radial Load Capacity 147 N, Includes Retaining Ring No
