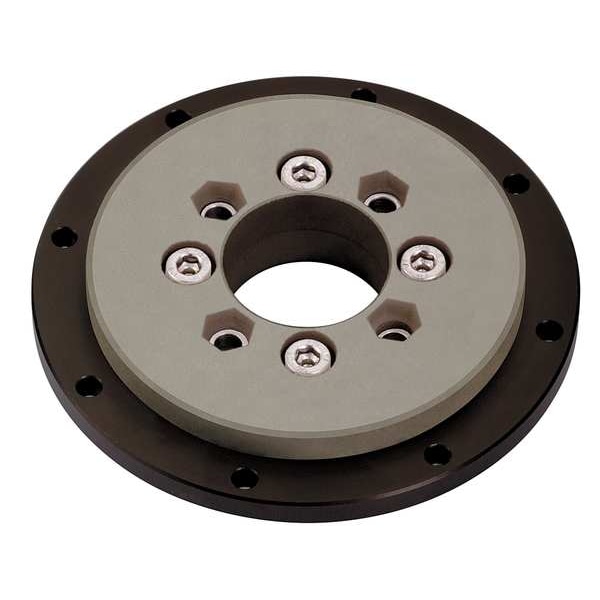

Slewing Ring Brg, 20 mm Bore, No Gear
Mfr # PRT-02-20-AL
Zoro # G9002533
product price:Â
$
178.99
/ea
Free Shipping & Returns
Key Features
Dimension B (mm)
70
Dimension L (mm)
DIN 2912-A2 M5
Max. RPM
250 RPM
Dimension D (mm)
20
Dimension I (mm)
6X60
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PRT-02-20-AL
- Zoro #
- G9002533
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Dimension B (mm)
- 70
- Dimension L (mm)
- DIN 2912-A2 M5
- Dimension D (mm)
- 20
- Dimension I (mm)
- 6X60
- Dimension K (mm)
- 4.5
- Dimension A (mm)
- 80
- Dimension C (mm)
- 31
- Dimension F (mm)
- 16
- Dimension E (mm)
- 60
- Dimension G (mm)
- 5
- Dimension H (mm)
- 6X60
- Outside Dia.
- 80 mm
- Inside Dia.
- 20 mm
- Width
- 16 mm
- Outside Mounting Hole Size
- 4.5mm
- Inside Mounting Hole Size
- M5
- Inside Mount Hole Size
- M5
- Overall Width
- 16 mm
- Outside Mount Hole Size
- 4.5 mm
- Outside Bolt Circle Diameter
- 4 1/2 mm
- Bore Diameter
- 20 mm
- Outside Diameter
- 60 mm
Description
Slewing Ring Bearing, Bore Diameter 20 mm, Maximum Speed 250 RPM, Moment Rating 44 ft-lb, Outside Diameter 60 mm, Overall Width 16 mm, Seal Type Not Applicable, System of Measurement Metric, Gear Type No Gear, Application Assembly Stations, Automation, Conveyors, Renewable Energy, Stage and Lighting Technology, Bearing Insert Type Plain Sleeve, Closure Sealed, Dynamic Axial Load Capacity 899 lbf, Dynamic Radial Load Capacity 112 lbf, Housing Material Aluminum, Housing Material Finish Anodized
