Ina

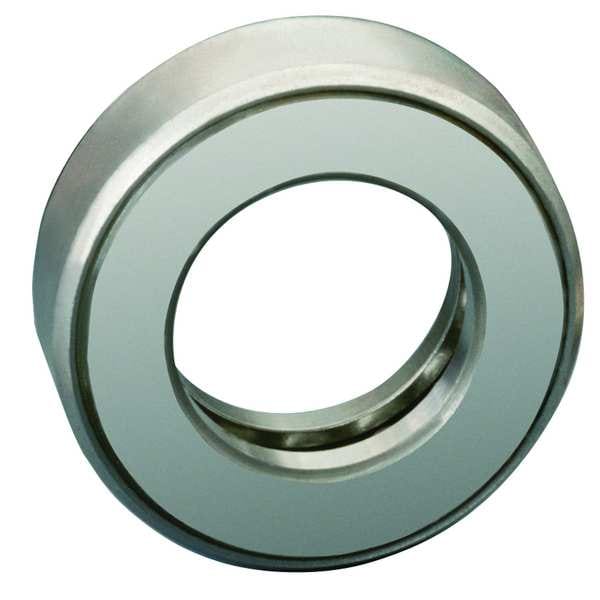

Banded Ball Thrust Bearing, Bore .750 In

original price: $36.09
5% off
new price: $34.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Banded Ball
  • Temp. Range (F) -20 Degrees to +250 Degrees F
  • Height (In.) 0.563 in
  • Cage Material Steel
  • Dynamic Load Capacity (Lb.) 4,250 lb
See all product information

Product Information

Dimensions

Height (In.) 0.563 in
Outside Dia. (In.) 1.469 in
Bore Dia. (In.) 0.75 in
Bore Diameter 3/4 in
Outside Diameter 1 15/32 in
Overall Width 0.563 in

Details

Type Banded Ball
Temp. Range (F) -20 Degrees to +250 Degrees F
Cage Material Steel
Dynamic Load Capacity (Lb.) 4,250 lb
Item Ball Thrust Bearing
Static Load Capacity (Lb.) 7,300 lb
Direction Axial
Lubrication Oil
Max. RPM 5,500 RPM
Lubrication Openings Lubrication Hole
Lubricant Material Oil
Application Industrial
Static Axial Load Capacity 7,300 lbf
Washer Material Steel
Maximum Temperature 250 Degrees F
Maximum Speed 5,500 RPM
Dynamic Axial Load Capacity 4,250 lbf
Washer Material Grade 100Cr6
System of Measurement Inch
Bearing Industry Number D5
Minimum Temperature -20 Degrees F
Thrust Bearing Type Banded Ball Thrust Bearing
Ball Material Steel
Cage Material Grade Sheet Steel
Ball Material Grade 100Cr6
Closure Open
Race Form Grooved
Housing Washer Bore 0.781 in

Description

Ball Thrust Bearing, Ball Material Steel, Bearing Industry Number D5, Bore Diameter 3/4 in, Cage Material Steel, Closure Open, Housing Washer Bore 0.781 in, Lubricant Material Oil, Maximum Speed 5,500 RPM, Outside Diameter 1 15/32 in, Overall Width 0.563 in, Seal Material Not Applicable, Seal Type Not Applicable, System of Measurement Inch, Thrust Bearing Type Banded Ball Thrust Bearing, Washer Material Steel, Application Industrial, Ball Material Grade 100Cr6, Cage Material Grade Sheet Steel
