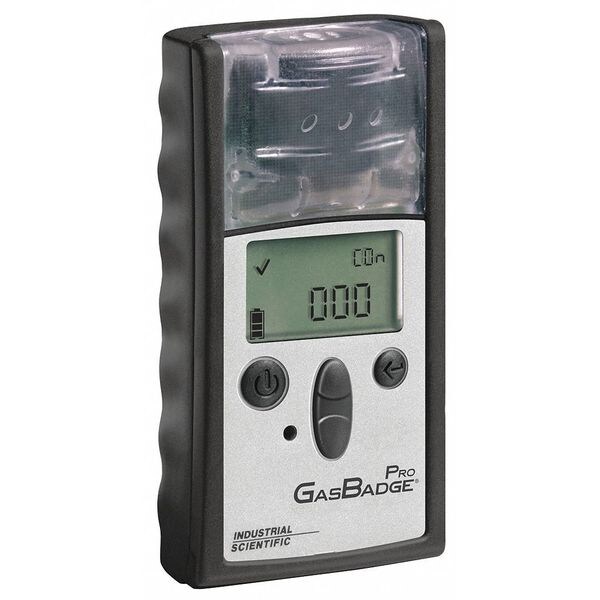

Industrial Scientific HCN, Audible, Vibrating, Visual, 2,600 hr Battery Life 18100060-B - main

HCN, Audible, Vibrating, Visual, 2,600 hr Battery Life

  • Mfr # 18100060-B

  • Zoro # G4077214

product price: $1,115.99
/ea
Free Shipping & Returns

Key Features

Gas Type
HCN
Operating Temp. Range
-40 Degrees to 140 Degrees F
Alarm Setting
Adjustable
Detects
Hydrogen Cyanide
Standards
ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18100060-B
Zoro #
G4077214
UPC #
-
Country of Origin
United States

Dimensions

Height
3 45/64 in
Width
2 in
Depth
1 7/64 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.1 in
Overall Height
3.7 in
Battery Size
2CR
Overall Width
2 in

Details

Item
Single-Gas Detector
Gas Type
HCN
Operating Temp. Range
-40 Degrees to 140 Degrees F
Alarm Setting
Adjustable
Detects
Hydrogen Cyanide
Standards
ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4
Features
Standard TWA and STEL
Sensor Range
0 to 30 ppm
IP Rating
IP64
Includes
Attached Suspender Clip, Calibration Adapter and Tubing, Operating Instruction
Display
LCD
Power Source
Battery
Battery Life
2,600 hr
Interchangeable Sensors
Yes
Alarm Type
Audible, Vibrating, Visual
Housing Color
Black
Accuracy
+/-10% (At Temperature of Calibration), +/-15% (Over Full Measurement Temperature)
Status Indicator
LED
Resolution
0.1 ppm
Battery Type
CR2 Lithium
Sensor Life
1 yr (HCN)
Rechargeable Battery
No
Number of Gases Detected
1
Battery Chemistry
Lithium
Battery Voltage
3 V
Temperature Code
T4
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
140 Degrees F
Operating Humidity - Maximum
99 %
Data Logger
Yes
Replaceable Battery
Yes
Operating Humidity - Minimum
0 %
Sensor Type
Infrared
Series
GasBadge Pro
Measurement Range
Hydrogen Cyanide (0 to 30 ppm)
Maintainability
Maintainable
Alarm Setting Adjustment
Adjustable Alarm Setting
Alert Type
Vibration
Housing Material
Polycarbonate
Resistance Properties
Water Resistant
Alarm Volume Level
95 dB
Includes Mounting Hardware
Yes
Communication Protocol
PC-Compatible Interface
Includes Probe
No
Chemical Formula
CL2, CLO2, CO, CO/H2, H2, H2S, HCN, NH3, NO2, O2, PH3, SO2

Description

Single-Gas Detector, Replaceable Battery Yes, Product Type Single-Gas Detector, Display Screen Type LCD, Includes Probe No, Housing Color Black, Gas Detected Hydrogen Cyanide, Communication Protocol PC-Compatible Interface, Series GasBadge Pro, Battery Size 2CR, Operating Humidity - Maximum 99 Percent, Status Indicator LED, Rechargeable Battery No, Includes Mounting Hardware Yes, Battery Voltage 3 V, Resistance Properties Water Resistant, Operating Humidity - Minimum 0 Percent
