  11. Ventis Pro5 Multi-Gas Detector, IP68, Audible, Vibrating, Visual, LCD with Backlight

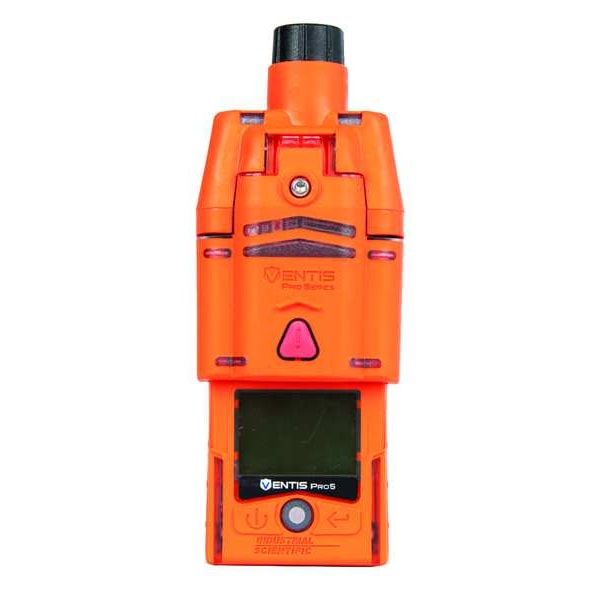

Industrial Scientific Ventis Pro5 Multi-Gas Detector, IP68, Audible, Vibrating, Visual, LCD with Backlight VP5-U1632111101 - main

Ventis Pro5 Multi-Gas Detector, IP68, Audible, Vibrating, Visual, LCD with Backlight

  • Mfr # VP5-U1632111101

  • Zoro # G4443260

product price: $3,735.99
/ea
Free Shipping & Returns

Key Features

Gas Detected
Ammonia, Carbon Dioxide, Carbon Monoxide, LEL, Oxygen
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Adjustable
Battery Life
23 hr
Operating Temp. Range
-40 Degrees to 50 Degrees C (-40 Degrees to 122 Degrees F)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP5-U1632111101
Zoro #
G4443260
UPC #
-
Country of Origin
United States

Dimensions

Width
2 19/32 in
Height
6 13/16 in
Overall Height
6.8 in
Overall Width
2.6 in
Overall Depth
2.6 in
Manufacturer Warranty Length
4 yr

Details

Item
Multi-Gas Detector
Gas Detected
Ammonia, Carbon Dioxide, Carbon Monoxide, LEL, Oxygen
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Adjustable
Battery Life
23 hr
Operating Temp. Range
-40 Degrees to 50 Degrees C (-40 Degrees to 122 Degrees F)
Standards
CSA Certified, UL Listed
Sensor Range
CO 0 to 2000ppm, CO2 0 to 5% vol CH4, LEL 0 to 100%, NHE 0 to 500ppm, O2 0 to 30% v/v
IP Rating
IP68
Series
Ventis Pro5
Display Screen Type
LCD with Backlight
Chemical Formula
CL2, CO, CO2, H2S, HCN, NH3, NO2, O2, PH3, SO2
Resolution
Ammonia 1 ppm, Carbon Dioxide 0.01% vol, Carbon Monoxide 1 ppm, LEL 0.01%, Oxygen 0.1% vol
Features
Locally Share Alarms and Gas Readings Between Wirelessly Connected Ventis Pro5 Monitors., Train Workers on One
Includes
Charger
Housing Color
Orange
Power Source
Battery
Status Indicator
LED
Number of Peers - Maximum
25
Receiver Range
300 ft
Operating Temperature - Maximum
122 Degrees F
Visual Alert Type
Blue LED, Red LED
Housing Material
Polycarbonate
Measurement Range
Carbon Monoxide (0 to 2000 ppm in 1 ppm), Ammonia (0 to 500 ppm), Oxygen (0 to 30% of vol in 0.1%)
Number of Sensors
3
Sensor Life
1 yr
Alarm Setting Adjustment
Adjustable Alarm Setting
Operating Frequency
2.405 to 2.480 GHz
Alarm Volume Level
95 dB @ 3.9 in
Battery Chemistry
Lithium Ion
Operating Humidity - Minimum
15 %
Sensor Type
Catalytic, Electrochemical, Infrared
Data Logger
Yes
Number of Records Stored
60 Alarm Events
Communication Protocol
Cellular, Wi-Fi, Wireless Mesh (WMN)
Temperature Code
T4
Rechargeable Battery
Yes
Display Type
Digital
Operating Humidity - Maximum
95 %
Operating Temperature - Minimum
-40 Degrees F
Replaceable Battery
Yes
Hazardous Location Specification
Class I Divisions 1 Groups A, B, C, D, T4, Class I Zone 1, EX D IA IIC, T4
Includes Probe
No
Number of Gases Detected
5
Includes Charger
Yes
Alert Type
Vibration

Description

Multi-Gas Detector, Replaceable Battery Yes, Product Type Multi-Gas Detector, Display Screen Type LCD with Backlight, Includes Probe No, Housing Color Orange, Gas Detected Ammonia, Carbon Dioxide, Carbon Monoxide, LEL, Oxygen, Communication Protocol Cellular, Wi-Fi, Wireless Mesh (WMN), Series Ventis Pro5, Number of Records Stored 60 Alarm Events, Operating Humidity - Maximum 95 Percent, Status Indicator LED, Rechargeable Battery Yes, Operating Humidity - Minimum 15 Percent
