Shop INGERSOLL-RAND

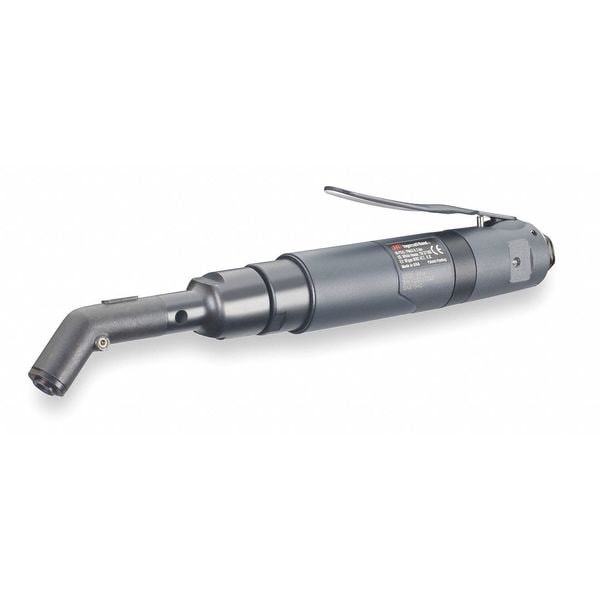

Air Drill, Industrial, Rt Angle, 1/4 In.-28

  • Mfr # QA2754D

  • Zoro # G2178827

product price:
$
1,607.99
/ea
Free Shipping & Returns

Key Features

HP
0.28
HP - Air Tools
0.28
Chuck Size - Air Drills
1/4 in
CFM @ Full Load
16.0
Air Inlet
1/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QA2754D
Zoro #
G2178827
UPC #
094705016497
Country of Origin
Mexico

Dimensions

Chuck Size - Air Drills
1/4 in
Min. Hose Size
1/4 in
Overall Length
10 1/2 in
Chuck Size
1/4 in
Right Angle Length
4 5/8 in
Air Inlet Size - Air Tools
1/4 in NPT
Overall Width
7 7/8 in
Overall Height
1 3/8 in
Hose Size - Minimum
1/4 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
10 1/2 in
Length
10 1/2 in

Details

Item
Air-Powered Drill
HP
0.28
HP - Air Tools
0.28
CFM @ Full Load
16.0
Air Inlet
1/4 in NPT
Drill Chuck Type - Air Drills
Threaded
Reversing
No
Required Pressure
90 PSI
Free Speed
2,700 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
110.1 in-lb
Includes
Hanging Bail
Gear Train
Planetary
Style
Right Angle
Duty
Industrial
Body Style - Air Tools
Right Angle
Drill Chuck Type
Threaded
Average CFM @ 15 Second Run Time
4.00
Bearings
Ball And Roller
Housing Material
Composite
Item - Air Drills
Air Drill
Tool Weight
1.4 lb
Handle Material
Composite
Variable Speed
Yes
Throttle Type
Lever
Handle Type
Right Angle
Chuck Material
Metal, Plastic
Vibration Level
2.5 m/sq sec
Power Source
Air-Powered
Reversible
No
Duty Rating
Industrial Duty
Series
Q2
Air Pressure
90 psi
Max. Torque
1.9 N-m
Torque Range
0 N-m to 1.9 N-m
Noise Level
75 dB
Horsepower
0.25 hp
Air Consumption
16 cfm
Bearing Design
Ball and Roller
Min. Torque
0 N-m
Side to Center
1/4 in
Exhaust Location
Rear
Tool Life
Ultra Durable
Frequency of Use
Frequent Maintenance to Heavy Production
Tool Series
Q2
Air Inlet Type
NPT
Torque - Minimum
0 N-m
Torque - Maximum
110 in-lb
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air-Powered Drill, Right Angle Body Style - Air Tools, Free Speed 2,700 RPM, Torque 110.1 in-lb, Average CFM @ 15 Second Run Time 4.00, CFM @ Full Load 16.0, Required Pressure 90 psi, Min. Hose Size 1/4 in, Handle Material Composite, Variable Speed Yes, Throttle Type Lever, Bearings Ball and Roller, Housing Material Composite, Gear Train Planetary, Length 10 1/2 in, Right Angle Length 4 5/8 in, Tool Weight 1.4 lb
