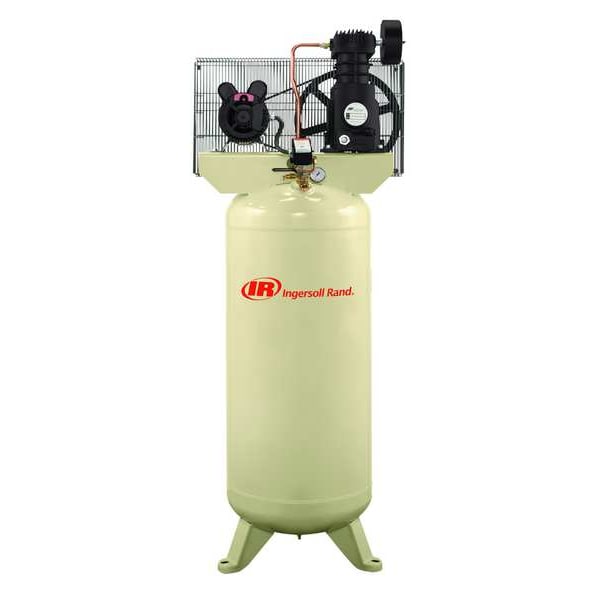

Electric Air Compressor, 5 hp, 1 Stage

  • Mfr # SS5L5

  • Zoro # G1991227


product price: $1,642.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Tank Size
60 gal.
Phase
Single
HP
5
Voltage
230V
Tank Type
Vertical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SS5L5
Zoro #
G1991227
UPC #
678384031721
Country of Origin
Mexico

Dimensions

Tank Size
60 gal.
Overall Height
71 in
Overall Length
20 in
Overall Width
30 in
Tank Size - Air Compressor
60 gal
Air Tank Size
60 gal
Inlet Size
1/2 in
Outlet Size
1/2 in

Details

Phase
Single
HP
5
Voltage
230V
Tank Type
Vertical
Max. Pressure
135 psig
Includes
Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
15.5
Lubrication Type
Splash Lubricated
Motor Type
Open Dripproof
Compressor Package Type
Base Model
Standards
ASME Approved, California Code, CSA
Pump Oil Capacity
34 fl oz
Hz
60
HP - Air Compressor
5.0 hp
Max. Pressure - Air Compressor
135 psi
On Pressure Switch Setting
100 psi
Tank Style - Air Compressor
Vertical
Control
Pressure Switch
Number of Stages
1
(F)NPT Outlet
1/2 in
Amps
21.5
Off Pressure Switch Setting
135 psi
Input Voltage - Air Compressor
240V AC
ASME Tank
Yes
Item - Air Compressor
Stationary Air Compressor
Number of Stages - Air Compressor
1
Style - Air Compressor
Simplex
Pump Location - Air Compressor
Tank Mounted
Free Air CFM @ Max. Pressure - Air Compressor
15.5
Cylinder Material
Cast Iron
Pump RPM
950
Phase - Electrical
1
Item
Electric Air Compressor
Finish
Powder Coated
Enclosure
NEMA 1
Lubrication Type - Air compressor
Splash Lubricated
Thermal Protection
Manual Reset
Duty Cycle
Continuous
Pump Type
Reciprocating
Control Type
Pressure Switch
Free Air Flow Rate @ Maximum Pressure
15.5 cfm
Outlet Type
NPT
Frequency
60 Hz
Enclosure Rating
NEMA 1
Enclosure Type
Open Dripproof
Output Power
5 hp
Maximum Operating Pressure
135 psi
Input Voltage
230V AC
Air Tank Style
Vertical
Maximum Speed
950 RPM
Current Rating
22.5 A
Outlet Gender
Female
Pump Style
Simplex
Pump Location
Top Mount
Type
Splash Lubricated

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Vertical, Number of Stages 1, Output Power 5 hp, Free Air Flow Rate @ Maximum Pressure 15.5 cfm, Maximum Operating Pressure 135 psi, Air Tank Size 60 gal, Input Voltage 230V AC, Phase Single, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
