  11. Electric Air Compressor, 7.5 hp, 2 Stage

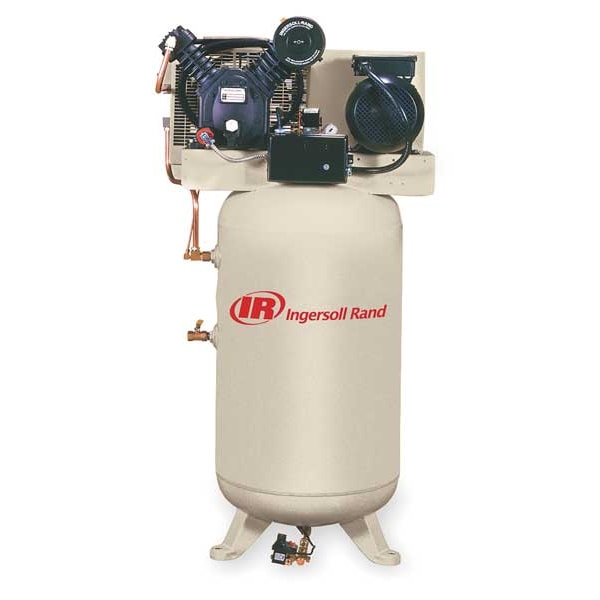

Ingersoll-Rand Electric Air Compressor, 7.5 hp, 2 Stage 2475N7.5-P-200/3 - main

Electric Air Compressor, 7.5 hp, 2 Stage

  • Mfr # 2475N7.5-P-200/3

  • Zoro # G4483272

product price: $4,882.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details

Key Features

Tank Size
80 gal.
Phase
Three
HP
7.5
Voltage
200V
Tank Type
Vertical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2475N7.5-P-200/3
Zoro #
G4483272
UPC #
094721709694
Country of Origin
Mexico

Dimensions

Tank Size
80 gal.
Overall Height
70.12 in
Overall Length
38.12 in
Tank Size - Air Compressor
80 gal
Overall Width
24 in
Outlet Size
3/4 in
Air Tank Size
80 gal
Inlet Size
3/4 in

Details

Phase
Three
HP
7.5
Voltage
200V
Tank Type
Vertical
Max. Pressure
175 psig
Includes
Air Cooled Aftercooler, Electronic Drain Valve, Low Oil Protection Switch, Motor Starter, Pressure Gauge, Pressure Safety Valve
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
24
Lubrication Type
Splash Lubricated
Motor Type
Open Dripproof
Compressor Package Type
Fully Packaged
Standards
ASME Approved, California Code, CSA
Off Pressure Switch Setting
175 psi
On Pressure Switch Setting
135 psi
Hz
60
Input Voltage - Air Compressor
200V AC
ASME Tank
Yes
Tank Style - Air Compressor
Vertical
Style - Air Compressor
Simplex
Amps
21.1
Pump RPM
1,500
Item
Electric Air Compressor
Finish
Powder Coated
Lubrication Type - Air compressor
Splash Lubricated
Max. Pressure - Air Compressor
175 psi
(F)NPT Outlet
3/4 in
Number of Stages - Air Compressor
2
Cylinder Material
Cast Iron
Free Air CFM @ Max. Pressure - Air Compressor
24.0
Enclosure
NEMA 1
Control
Pressure Switch
Number of Stages
2
dBA @ 3 Feet
85.0
Item - Air Compressor
Stationary Air Compressor
Pump Oil Capacity
41.6 fl oz
HP - Air Compressor
7.5 hp
Phase - Electrical
3
Pump Location - Air Compressor
Tank Mounted
Pump Type
Reciprocating
Duty Cycle
Continuous
Thermal Protection
Thermal Overload Relays In Motor Starters
Output Power
7.5 hp
Frequency
60 Hz
Enclosure Type
Open Dripproof
Outlet Gender
Female
Life Expectancy
15,000 hr
Enclosure Rating
NEMA 1
Free Air Flow Rate @ Maximum Pressure
24 cfm
Input Voltage
200V AC
Outlet Type
NPT
Maximum Speed
1,500 RPM
Control Type
Pressure Switch
Air Tank Style
Vertical
Maximum Operating Pressure
175 psi
Current Rating
21.1 A
Pump Location
Top Mount
Sound Level
85 dBA
Pump Style
Simplex
Type
Fully Packaged, Splash Lubricated

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Vertical, Number of Stages 2, Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 24 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 80 gal, Input Voltage 200V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Fully Packaged, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
