  9. IMPACT WR AIR 1"DR W/ 6" EXT ANVIL 147

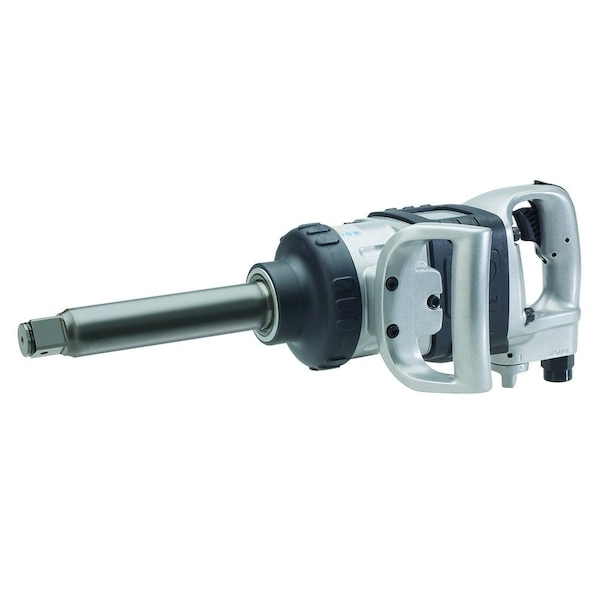

Ingersoll-Rand IMPACT WR AIR 1"DR W/ 6" EXT ANVIL 147 IR285B-6 - main

IMPACT WR AIR 1"DR W/ 6" EXT ANVIL 147

  • Mfr # IR285B-6

  • Zoro # G602122503

product price: $811.79
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1in
Free Speed
5250 RPM
Air Inlet
1/2" NPT
Handle Type
D-Handle
CFM @ Full Load
46 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IR285B-6
Zoro #
G602122503
UPC #
663023047362
Country of Origin
China

Dimensions

Square Drive Size
1in
Overall Length
20.4 in
Min. Hose Size
3/4 in
Anvil Length - Air Impacts
6 in Extended
Width
8.1 in
Height
7.2 in

Details

Free Speed
5250 RPM
Air Inlet
1/2" NPT
Handle Type
D-Handle
CFM @ Full Load
46 cfm
Style
Full Size
Duty
Heavy Duty
Blows per Minute
700
Throttle Type
Inside Trigger
Housing Material
Aluminum Core, Composite Sleeve
Required Pressure
90 psi
Max. Bolt Capacity
1-1/4 in
Retainer Type
Friction Ring and Thru-hole
Standards
ISO 11148-6, CAGI B186, ISO 28927-2, ISO 15744
Power to Weight Ratio
53 ft-lb/lb
Power Source
Air Powered
End Plate Material
Cast Iron
Impacting Sound Pressure/Power
98.8 / 109.8 dBA
Exhaust Location
Bottom
Max Reverse Torque
1475 ft-lb
Drive Type
Square
Fastening Torque
1475 ft-lb
Vibration Level
9 m/s2
Side to Center Distance
4.1 in
Free Speed Sound Pressure/Power
103.4 / 114.4 dBA
Impact Mechanism
Rocking Dog
Motor
Equal Forward & Reverse Power
Number of Power Settings
3
Vanes
6
Hammer Case
Aluminum
Max Pressure
6.2 bar
Average Air Consumption
11 cfm
