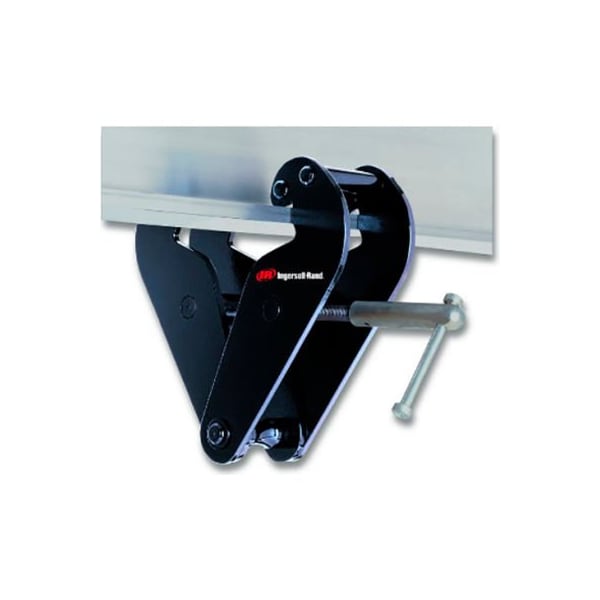

Ingersoll Rand Beam Clamp BC-3 6600 Lb. Capacity

Ingersoll rand beam clamp bc-3 6600 lb. Capacity beam clamps provide a temporary or permanent mount to a wide range of tapered or flat beams. They are the ideal rigging device for lifting, pulling or suspending loads. These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting asme b30.16 and asme b30.7. Quick and simple installation is achieved without tools. Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom. The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge. features: quick installation by hand low-headroom design adjusts to fit a wide range of flat or tapered beams meets asme b30.16 for use with powered or manual hoists each unit is serialized, supplied with a test certificate and manual metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton
