Shop INGERSOLL-RAND

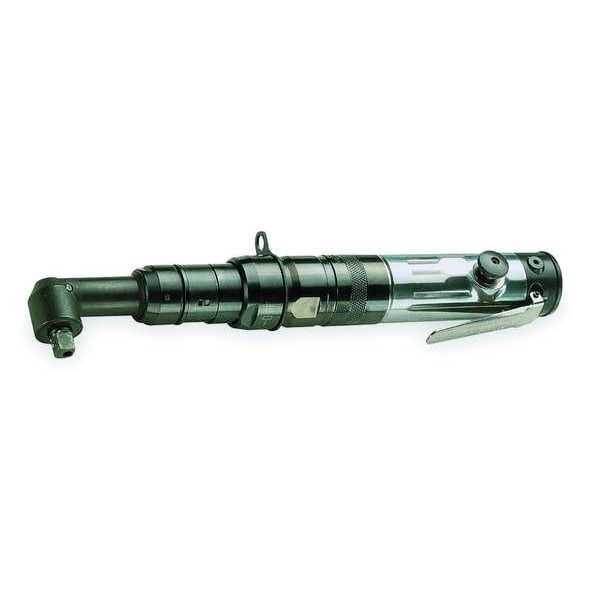

Nut Runner, 16.0 CFM, 15 to 110 in.-lb.

  • Mfr # 5RLN2C6

  • Zoro # G1012672

product price:  $2,295.99
/ea
Free Shipping & Returns

Key Features

Drive Size
3/8 in
Torque Range Soft Draw
15 to 110 in.-lb.
Drive System
Reversible Cushion Clutch
Free Speed
600 RPM
CFM @ Full Load
16.0
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5RLN2C6
Zoro #
G1012672
UPC #
663023085425
Country of Origin
Mexico

Dimensions

Drive Size
3/8 in
Head Width
1 in
Overall Length
13 1/8 in
Min. Hose Size
1/4 in
Head Height
1 1/8 in
Hose Size - Minimum
1/4 in
Air Inlet Connection Size
1/4 in

Details

Torque Range Soft Draw
15 to 110 in.-lb.
Drive System
Reversible Cushion Clutch
Free Speed
600 RPM
CFM @ Full Load
16.0
Air Inlet
1/4 in NPT
Base to Top
1-5/16"
Required Pressure
90 PSI
Throttle
Lever
Item
Nutrunner
Fastening Torque
9.12 ft-lb
Air Pressure
90 psi
Housing Material
Aluminum/Steel
Standards
All gov. standard and FDA certified
Throttle Type
Lever
Exhaust Location
Side
Retainer Type
Friction Ring
Features
Adjustable Shutoff Clutch, Flexible Anglehead, Reverse Ring
Reaction Bar
No
Max. Air Pressure
90 psi
Min. Air Pressure
50 psi
Clutch Style
Slip Clutch/Shut off
Power Source
Air-Powered
Torque Range
15 to 110 in-lb
Max. Torque
9.12 ft-lb
Tool Weight
1.7 lb
Handle Material
Aluminum/Steel
Handle Type
Right Angle
Duty Rating
General Duty
Reversible
Yes
Side to Center
1/2 in
Noise Level
73 dB
Air Consumption
16 cfm
Vibration Level
Less Than 2.5 m/sq sec
Frequency of Use
Maintenance to Light Production
Air Pressure - Maximum
90 psi
Torque - Minimum
1.25 ft-lb
Drive Shape
Square
Air Pressure - Minimum
50 psi
Torque - Maximum
110 in-lb
Air Inlet Type
NPT
Speed - Maximum
600 RPM
Tool Life
Long Lasting
Power Source - TS Only
Air-Powered

Description

Nutrunner, Drive Size 3/8 in, Torque Range 15 to 110 in-lb, Max. Torque 9.12 ft-lb, Free Speed 600 RPM, Air Pressure 90 psi, Air Consumption 16 cfm, Power Source Air-Powered, Max. Air Pressure 90 psi, Min. Air Pressure 50 psi, Min. Hose Size 1/4 in, Exhaust Location Side, Duty Rating General Duty, Air Inlet 1/4 in NPT, Handle Type Right Angle, Handle Material Aluminum/Steel, Housing Material Aluminum/Steel, Overall Length 13 1/8 in, Fastening Torque 9.12 ft-lb, Reversible Yes, Tool Weight 1.7 lb

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
