Shop INGERSOLL-RAND

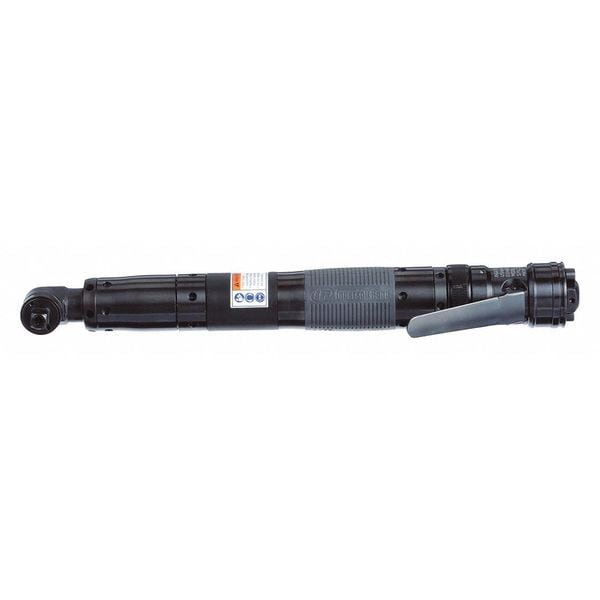

Pneumatic Nut Runner, 3/8" Drive, 800 rpm

  • Mfr # QA4AALS015NP25S06

  • Zoro # G3782149

product price:
$
3,437.99
/ea
Free Shipping & Returns

Key Features

Drive Size
3/8 in
Torque Range Soft Draw
55.2 to 100.8 in.-lb.
Drive System
Auto Shut Off
Free Speed
800 RPM
CFM @ Full Load
27.0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QA4AALS015NP25S06
Zoro #
G3782149
UPC #
-
Country of Origin
India

Dimensions

Drive Size
3/8 in
Head Width
1 in
Overall Length
13 1/2 in
Min. Hose Size
3/8 in
Head Height
1 1/4 in
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
3/8 in
Wire Rope Length
13 1/2 in
Length
13 1/2 in

Details

Torque Range Soft Draw
55.2 to 100.8 in.-lb.
Drive System
Auto Shut Off
Free Speed
800 RPM
CFM @ Full Load
27.0
Air Inlet
1/4 in NPT
Base to Top
1-7/8"
Required Pressure
90 psi
Throttle
Lever
Item
Nutrunner
Handle Type
Right Angle
Reaction Bar
No
Fastening Torque
11.1 ft-lb
Exhaust Location
Top
Max. Air Pressure
90 psi
Reversible
Yes
Duty Rating
General Duty
Housing Material
Aluminum/Steel
Air Pressure
90 psi
Torque Range
55.2 to 100.8 in-lb
Side to Center
1/2 in
Min. Air Pressure
80 psi
Throttle Type
Lever
Features
Adjustable Shutoff Clutch, Flexible Anglehead, Reverse Ring
Air Consumption
27 cfm
Noise Level
79 dB
Power Source
Air-Powered
Standards
All gov. standard and FDA certified
Handle Material
Aluminum/Steel
Max. Torque
11.1 ft-lb
Tool Weight
3.2 lb
Vibration Level
Less Than 2.5 m/sq sec
Retainer Type
Friction Ring
Clutch Style
Slip Clutch/Shut off
Drive Shape
Square
Speed - Maximum
800 RPM
Air Inlet Type
NPT
Torque - Maximum
11.1 ft-lb
Air Pressure - Maximum
90 psi
Air Pressure - Minimum
80 psi
Frequency of Use
Frequent Maintenance to Heavy Production
Torque - Minimum
5.2 ft-lb
Tool Life
Ultra Durable
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Nutrunner, Drive Size 3/8 in Square, Torque Range 5.2 to 11.1 ft-lb, Max. Torque 11.1 ft-lb, Free Speed 800 RPM, Air Pressure 90 psi, Air Consumption 27 cfm, Power Source Air Powered, Max. Air Pressure 90 psi, Min. Air Pressure 80 psi, Min. Hose Size 3/8 in, Exhaust Location Top, Duty Rating General Duty, Air Inlet 1/4 in NPT, Handle Type Right Angle, Handle Material Aluminum/Steel, Housing Material Aluminum/Steel, Overall Length 13 1/2 in, Fastening Torque 11.1 ft-lb, Reversible Yes
