  11. Ref Comp Air Dryer, 1000 cfm, 220 psi

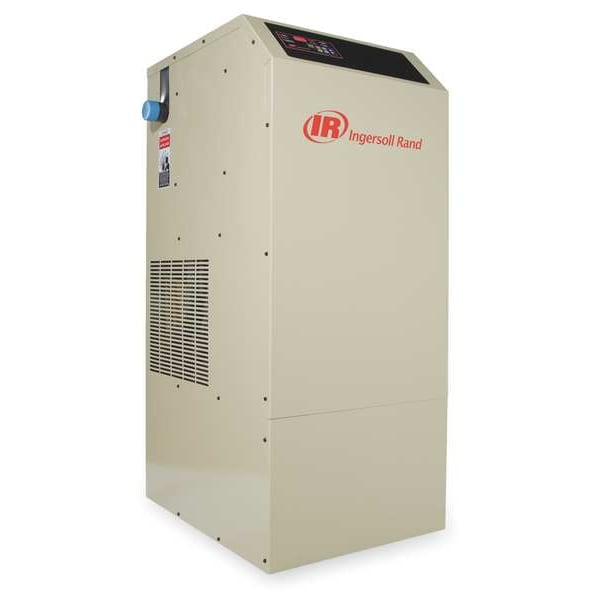

Ingersoll-Rand Ref Comp Air Dryer, 1000 cfm, 220 psi NVC1000 - main

Ref Comp Air Dryer, 1000 cfm, 220 psi

  • Mfr # NVC1000

  • Zoro # G0082483

product price: $30,706.99
/ea
Additional $715.00 delivery surcharge applies per item.
See details

Key Features

Includes
Centrifugal Separator
CFM
1000
Phase
Three
Voltage
460V AC
Pipe Size
4" Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVC1000
Zoro #
G0082483
UPC #
094704540023
Country of Origin
Mexico

Dimensions

Pipe Size
4" Flange
Overall Height
69 in
Overall Width
32 in
Overall Depth
72 in
Connection Size - Air Treatment
4 in Flange
Air Inlet Size
4 in
Air Outlet Size
4 in

Details

Item
Refrigerated Air Dryer
Includes
Centrifugal Separator
CFM
1000
Phase
Three
Voltage
460V AC
Max. Pressure
220 psi
Refrigeration Compressor (HP)
6
ISO Class
4
Refrigerant
R-404A
Features
Thermal Mass Cycling
Dew Point
38 Degrees F
Phase - Air Treatment
Three
Finish
Powder Coated
Bracket Kit
No
Item - Refrigerated Air Dryers
Refrigerated Compressed Air Dryer
Power
7.03 kW
Full Load Amps
25 A
Max. Inlet Temp.
120 Degrees F
Refrigeration Compressor HP
6 hp
Input Voltage - Air Treatment
460V AC
Max. Air Compressor HP
150 hp
Heat Exchanger Material
Stainless Steel
Max. Flow - Air Treatment
1,000 cfm
ISO Class - Air Treatment
4
Max. Incoming Pressure - Air Treatment
220 psi
Max. Inlet Temp. - Air Treatment
120 Degrees F
Max. Ambient Temp.
113 Degrees F
Number of Air Inlets
1
Cycling Type
Cycling
Full Load Current
25 A
Series
Nirvana
Maximum Ambient Temperature
113 Degrees F
Air Inlet Gender
Female
Air Outlet Type
Flange
Standards
ETL
Maximum Flow @ 100 psi
1,000 scfm
Refrigeration Compressor Horsepower
6 hp
Number of Air Outlets
1
Frequency
50 Hz, 60 Hz
Pressure Drop
2.5 psig
For Maximum Compressor Output Power
150 hp
Maximum Operating Temperature
120 Degrees F
Filtered Substance
Moisture
Air Inlet Type
Flange
Maximum Flow Rate
1,000 cfm
Weight
2,315 lb
Bracket Kit Included
No
Maximum Operating Pressure
220 psi

Description

Refrigerated Air Dryer, ISO Class 4, Maximum Flow Rate 1,000 cfm, Voltage 460V AC, Phase Three, Air Inlet Size 4 in, Air Inlet Type Flange, Air Inlet Gender Female, Maximum Operating Temperature 120 Degrees F, Power 7.03 kW, Dew Point 38 Degrees F, Series Nirvana, Air Outlet Size 4 in, Air Outlet Type Flange, Bracket Kit Included No, Cycling Type Cycling, Features Thermal Mass Cycling, Filtered Substance Moisture
