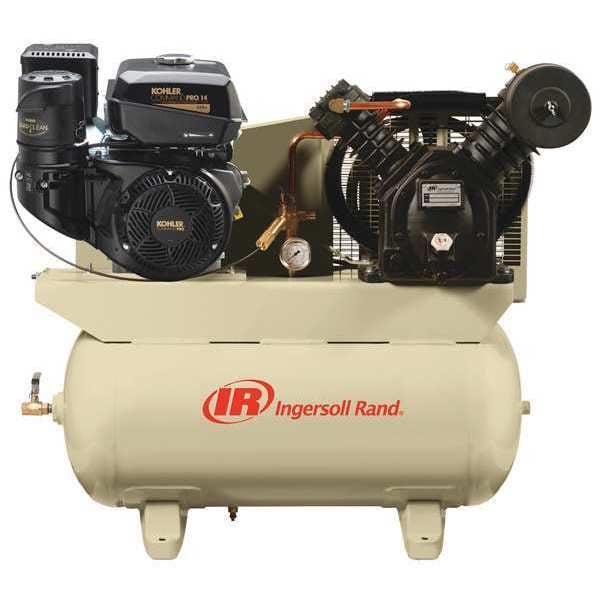

Stationary Air Compressor, 2 Stage, 14 hp

  • Mfr # 2475F14G

  • Zoro # G4186201


product price: $4,558.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Pump Type - Air Compressor
Piston
Engine HP - Air Compressor
14.0 hp
Number of Stages - Air Compressor
2
Tank Size - Air Compressor
30 gal
Engine Brand - Air Compressor
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2475F14G
Zoro #
G4186201
UPC #
678384660754
Country of Origin
Mexico

Dimensions

Tank Size - Air Compressor
30 gal
Overall Length
45.1 in
Overall Height
41 in
Tank Size
30 gal.
Overall Width
22 in
Air Tank Size
30 gal
Outlet Size
1/2 in

Details

Pump Type - Air Compressor
Piston
Engine HP - Air Compressor
14.0 hp
Number of Stages - Air Compressor
2
Engine Brand - Air Compressor
Kohler
Free Air CFM @ Max. Pressure - Air Compressor
23.4
Max. Pressure - Air Compressor
175 psi
Engine Starter Type - Air Compressor
Electric, Recoil
Alternator Included
Yes
(F)NPT Outlet
1/2 in
Item - Air Compressor
Stationary Air Compressor
Standards
ASME and CRN for Tanks and Safety Relief Valves, EEC and Canadian RFI Standards (Engine Only), EPA II for Emission (Engine Only)
Fuel Tank Capacity - Air Compressor
1.93 gal
Pump RPM
1,500
Tank Style - Air Compressor
Horizontal
Engine Oil Capacity
37.1 oz
Fuel Tank Capacity
1.93 gal.
Free Air CFM @ Max. Pressure
24.0
ASME Tank
Yes
Engine Alternator
Yes
Engine Electrical Start
Yes
Fuel Type - Engine
Gasoline
Valve Control
Automatically Idles Engine at 175 psi, Pilot, Resumes Full Throttle at 145 psi
Engine Pull Start
Yes
Max. Pressure
175 psi
Fuel Type
Gasoline
Engine Brand
Kohler
Pump Oil Capacity
41.6 oz
Number of Stages
2
Item
Stationary Air Compressor
Tank Type
Horizontal
Finish
Powder Coated Painted
Engine HP
14.0
Weight
469 lb
Duty Cycle
Continuous
Air Tank Style
Horizontal
Cylinder Material
Cast Iron
Free Air Flow Rate @ Maximum Pressure
24 cfm
Engine Output Power
14 hp
Outlet Type
NPT
Outlet Gender
Female
Sound Level
85 dB
Maximum Speed
1,500 RPM
Free Air Flow Rate
24.3 cfm
Average Pump Life
15,000 hr
Maximum Operating Pressure
175 psi
Low Oil Shutdown
Yes

Description

Stationary Air Compressor, Fuel Type Gasoline, Number of Stages 2, Engine Output Power 14 hp, Engine Brand Kohler, Free Air Flow Rate 24.3 cfm, Free Air Flow Rate @ Maximum Pressure 24 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 30 gal, Air Tank Style Horizontal, Sound Level 85 dB, Maximum Speed 1,500 RPM, Duty Cycle Continuous, Average Pump Life 15,000 hr, Pump Oil Capacity 41.6 oz, Engine Oil Capacity 37.1 oz, Low Oil Shutdown Yes

Restrictions

Hazardous material
