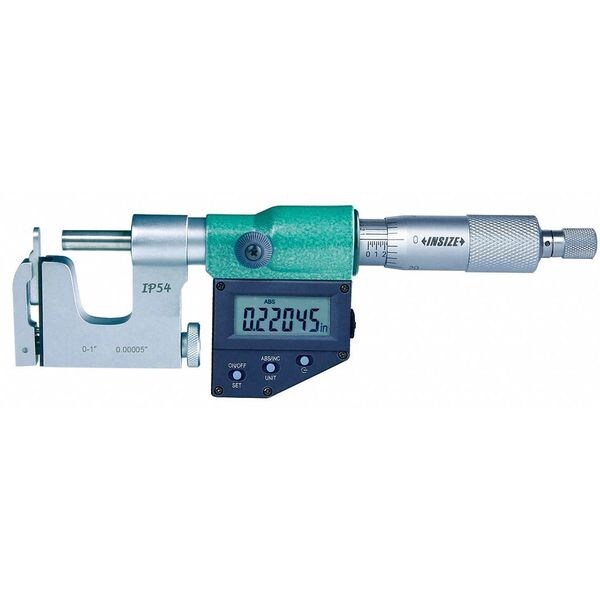

Insize Anvil Micrometer, Interchangeable Anvil 3562-25E - main

Anvil Micrometer, Interchangeable Anvil

  • Mfr # 3562-25E

  • Zoro # G6250078

product price: $536.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25mm
Operation
Electronic
Features
Buttons, On/Off Set, Inch/mm Measurements, Data Output, Automatic Power Off
Includes
(1) Battery (SR44/LR44)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3562-25E
Zoro #
G6250078
UPC #
-
Country of Origin
China

Dimensions

Spindle Size
0.256 in
Anvil Size
0.118 in, 0.256 in
Spindle Diameter
0.256 in
Battery Size
LR44, SR44
Dimension Type
Inch/Metric
Spindle Diameter1
0.256 in
Jaw Depth
1.024 in

Details

Item
Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25mm
Operation
Electronic
Features
Buttons, On/Off Set, Inch/mm Measurements, Data Output, Automatic Power Off
Includes
(1) Battery (SR44/LR44)
Spindle
Flat
Anvil
Interchangeable
Thimble
Ratchet
Lock Nut Type
Lock Nut
Rotating Spindle (Yes/No)
Yes
SPC Output
Yes
Spindle Material
Carbide Tipped
Anvil Material
Steel
IP Rating
IP65
Long Form Calibration Certificate
No
Display Type
LCD
Minimum Measurement - Inch
0 in
Maximum Measurement - mm
25 mm
Accuracy
+/-0.00016 in
Data Output Type
Cabled, Wireless
Maximum Measurement - Inch
1 in
Anvil Shape
Interchangeable
Coolant Resistant
Yes
Includes Battery
Yes
Thimble Type
Ratchet
Operation Type
Digital
Minimum Measurement - mm
0 mm
Compatible Data Output Cable
Mfr. No. 7302-SPC6, Mfr. No. 7305-B01, Mfr. No. 7305-SPC3A, Mfr. No. 7306-30A
Spindle Shape
Flat
Millimeters Measured - Maximum
25 mm
Inches Measured - Maximum
1 in
Rotating Spindle
Yes
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm

Description

Digital Interchangeable-Anvil Micrometer, Range 0 in to 1 in, 0 mm to 25 mm, Resolution 0.00005 in, Accuracy +/-0.00016 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Wireless, Long Form Calibration Certificate No, Anvil Shape Interchangeable, Anvil Size 0.118 in, 0.256 in, Coolant Resistant Yes, Dimension Type Inch/Metric, Jaw Depth 1.024 in, Operation Type Digital, Thimble Type Ratchet, Anvil Material Steel, Battery Size LR44, SR44
