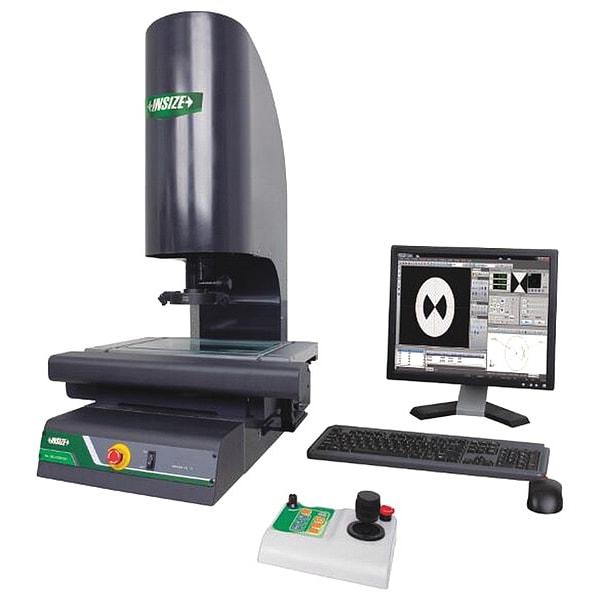

Cnc Vision Measuring System

  • Mfr # ISD-V270CNCA-U

  • Zoro # G5134964

product price:
$
47,489.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

Accuracy
(2.5+L/100)micron m
Size
500mm x 330mm
Resolution
0.5 micron
Capacity (Lb.) Max.
66 lb
Includes
Computer
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ISD-V270CNCA-U
Zoro #
G5134964
UPC #
-
Country of Origin
China

Dimensions

Size
500mm x 330mm
Stage Glass Size
13.78 x 9.84 in
Stage Size
20 in x 13 in
Maximum Workpiece Height
6.3 in
Length Standard
Linear Scale
Overall Dimensions
29 59/64 in x 23 5/8 in x 35 7/16 in

Details

Item
CNC Vision Measuring System with Computer
Accuracy
(2.5+L/100)micron m
Resolution
0.5 micron
Capacity (Lb.) Max.
66 lb
Includes
Computer
Magnification
33x~195x
Protractor Screen
19.5 in
Reading
Digital
Measuring Range
10.63 in x 6.69 in x 5.90 in
Power Supply
110/220V, 50/60 Hz
Illumination
Adjustable LED Light
Z-Axis Measuring Range
5 29/32 in
Repeatability
+/-0.00008 in
Y-Axis Measuring Range
6 45/64 in
Data Output Type
Cable
Image Detecting Unit
1/2 in Color CCD, 0.4M Pixel
Optical System Magnification
33 to 195X
Magnification System
20X-128X
X-Axis Measuring Range
10 5/8 in
Digital Zoom
0.7x to 4.5x
Observation Unit Zoom
4.5X
Measuring Accuracy
(98.4+10L)uin
Optical System Working Distance
3.625 in
Focusing Travel
5.90625 in
Projector Series
Insize ISD-V
Vision Measuring System Type
CNC
Display Accuracy
(98.4+10L)uin
Image Type
Erect
Power Required
Yes
X-Axis Measurement
10 5/8 in
Z-Axis Measurement
5 29/32 in
Y-Axis Measurement
6 45/64 in

Description

The InSize ISD-V270CNCA-U Cnc Vision Measuring System is the ideal system for checking the dimensions of your workpieces. It has a measuring range of 10.63 in x 6.69 in x 5.90 in and an accuracy of +/-micron m, ensuring that you get precise measurements every time. The computerized cnc vision measuring system has a magnification system of 20X-128X. It has a 1/2" color CCD, 0.4M pixel image detecting unit. The stage glass size measures 13.78 in x 9.84 in while the stage size is 20 in x 13 in.. This cnc vision measuring system also features an adjustable LED light for illumination purposes and comes with a standard power supply at 110/220V, 50/60 Hz; it measures 500mm x 330mm overall and weighs 23 kg. If you're looking for accurate measurements that you can rely on every time, then the InSize ISD-V270CNCA-U Cnc Vision Measuring System is what you need.
