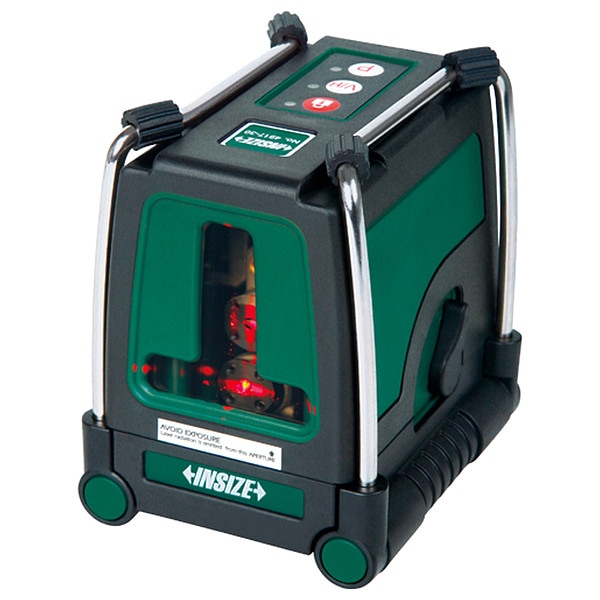

Cross-line Laser Level

  • Mfr # 4917-30

  • Zoro # G5127718


product price: $264.99
/ea
Free Shipping & Returns

Key Features

Includes
Adapter
For Use With
Outdoor Detector (Optional)
Application
Leveling
Accuracy
0.2 mm/m
Power Source
3xAA batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4917-30
Zoro #
G5127718
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4 1/8 in
Overall Depth
3 15/16 in
Tripod Thread Size
5/8"-11
Overall Width
3 1/4 in

Details

Item
Cross-Line Laser Level
Includes
Adapter
For Use With
Outdoor Detector (Optional)
Application
Leveling
Accuracy
0.2 mm/m
Power Source
3xAA batteries
Characteristics
IP54 Waterproof, Audible and Visual Warning, Lase line width: 2 +/-0.5mm (within 5m), Beam Angle: 120 +/-0.5 Degrees , Self-leveling range: +/-3 Degrees
Number of 45 Vials
0
Material
Plastic
Weight
620 g
Number of Dots
0
IP Rating
IP54
Operating Temperature - Maximum
104 Degrees F
Self-Leveling Range
+/-3 Degrees
Indoor Range - Maximum
30 m
Number of Beams
2
Number of Scanning Modes
2
Laser Beam Color
Red
Operating Temperature - Minimum
14 Degrees F
Includes Batteries
Batteries Included
Working Range without Detector - Maximum
98 ft
Slope
+/-3 Degrees
Number of Plumb Vials
0
Mount Type
Mounting Bracket, Tripod
Number of Lines
2
Use Location
Indoor, Outdoor
Leveling Type
Electronic Self-Leveling
Features
Folding Legs for Angle and Height Adjustment
Number of Level Vials
0
Level Indicators
Audible, Visual
Number of Planes
0
Outdoor Range - Maximum
164 ft
Preset Angles
0 Degrees
Laser Output
Less Than1 mW
Bluetooth
Not Bluetooth Compatible
Plumb Direction
Plumb Down, Plumb Up
Laser Class
Class 2
Battery Type
AA
Working Range with Detector - Maximum
164 ft
Laser Projection
Horizontal, Vertical
Automatic Shutoff
No
Total Number of Vials
0

Description

Cross-Line Laser Level, Accuracy 0.2 mm/m, Battery Type AA, Bluetooth Not Bluetooth Compatible, Features Folding Legs for Angle and Height Adjustment, Includes Adapter, Number of Beams 2, Number of Planes 0, Number of Dots 0, Number of Lines 2, Working Range with Detector - Maximum 164 ft, Working Range without Detector - Maximum 98 ft, Mount Type Mounting Bracket, Tripod, Includes Batteries Batteries Included, Leveling Type Electronic Self-Leveling, Laser Projection Horizontal, Vertical
